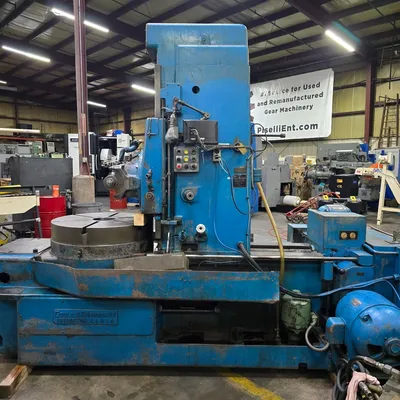

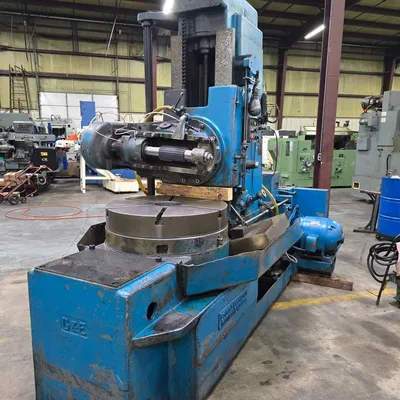

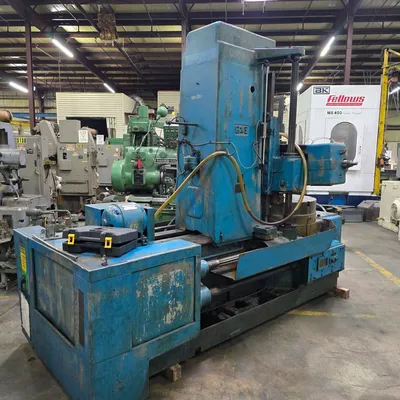

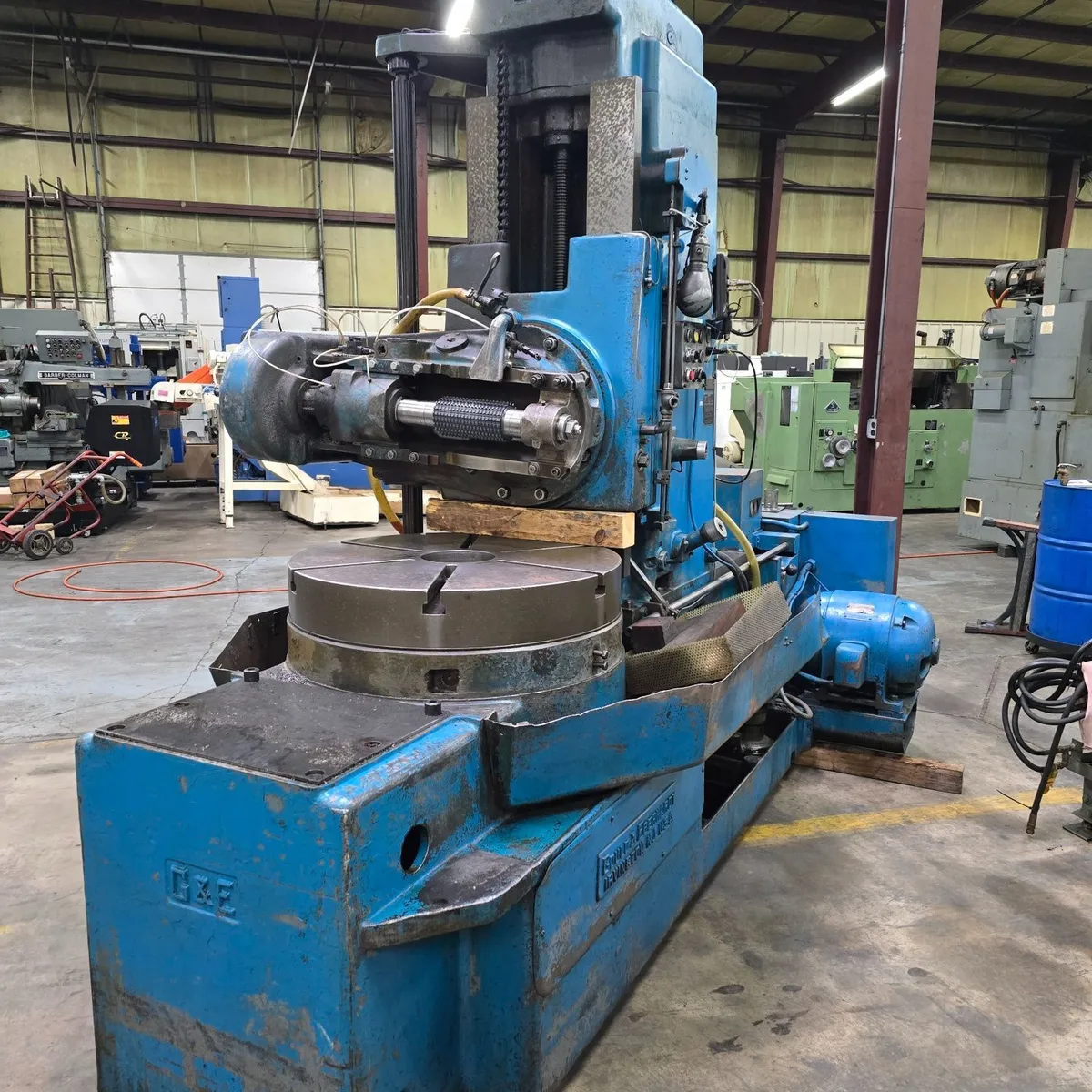

Gould & Eberhardt Model 48H Universal Gear hobber, 48" diameter, 8" diameter Hob, 20" hob slide travel , No Diff., No tailstock, good running condition s/n 6250A12
Gould & Eberhardt Vertical gear hobber
Model 48H

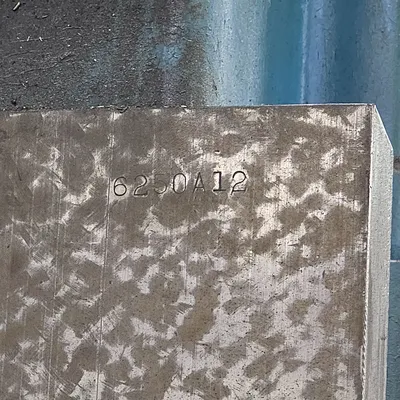

s/n 6250A12
the machine Has been shipped to our Statesville NC facility for
under power testing
Machine catalog specs as follows :
max diameter w/o support 48"
max pitch 2.5 dp
max hob slide length 22"
max face capacity 18"
Min centers 0"
max diam hob 8"
Diameter work table 32"(tBD)
Max table bore 7"
diameter index worm gear 32"
Main motor 10 HP
floor space 52" x 126"
machine weight 17,000 lbs
Machine is equipped with :
Standard H universal style head
Digital readout
No differential
No tailstock

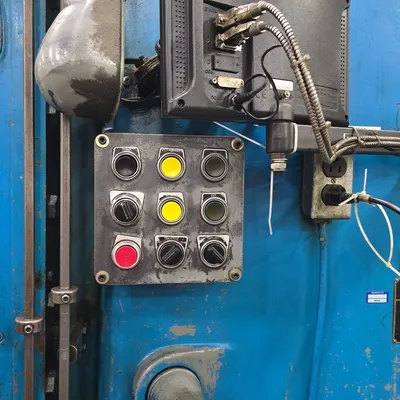

Push button Controls
hob arbor

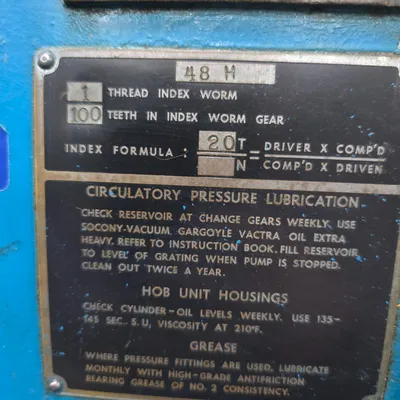

20/N w/ 100 teeth in worm wheel
Misc. change gears & tooling
Manuals
This machine is presently in our Statesville NC facility and can be
inspected under power with proper notice. Machine will be gone through.
contact rich at rich@pisellient.com to request a formal quote & Pricing
or visit our website at www.pisellient.com for more photos and other
Machines and equipment
