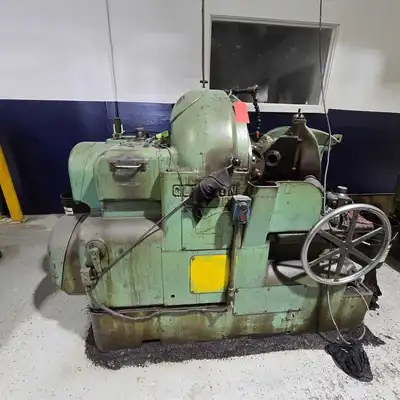

Gleason Model 7A Spiral Bevel Gear Generator Utilizing Rotary Cutters 3in Diameter Cap. In Plant Under Power

Gleason Spiral bevel gear Generators
Model 7a
s/n 17356 & 20981

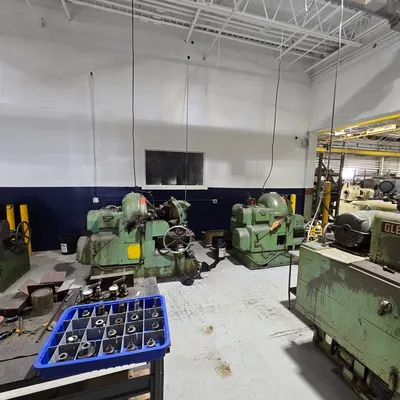

2 available in plant

We have two machines available for immediate inspection

specifications are as follows:
Maximum Pitch 4 DP
Longest Cone Distance 4.25"
Pitch Angle 5 degree 42 min to
-84 degree 18 min
Maximum Face 1.25 inches
Maximum Full Depth 0.5 inches
Number of Teeth 5 to 200
Extreme Ratio 10 to 1

- The machine can work in Generation Mode & also in Format Mode.
- The machine can cut both Crown-wheel & Pinion Gears.

Machine is equipped with the following
changes gears
manuals
misc tooling

machines need some work to be seen under power

inspect machines under power with proper notice .
visit Pisellient.com to request formal quote and pricing
for these Gear cutting machines or see our extensive
inventory of other gear machinery
call rich Piselli at 704-609-0766 for further information
or to request an inspection visit . you can also email him
at rich@Pisellient.com
