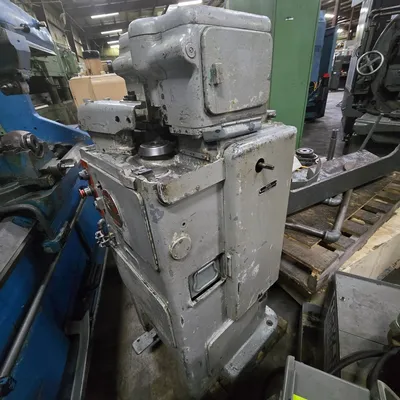

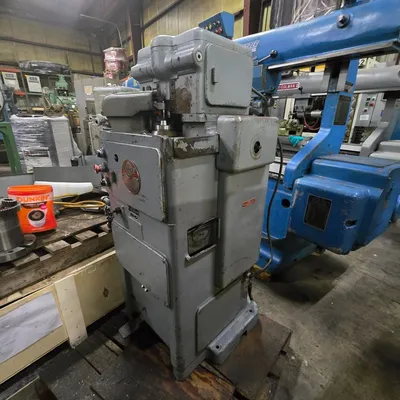

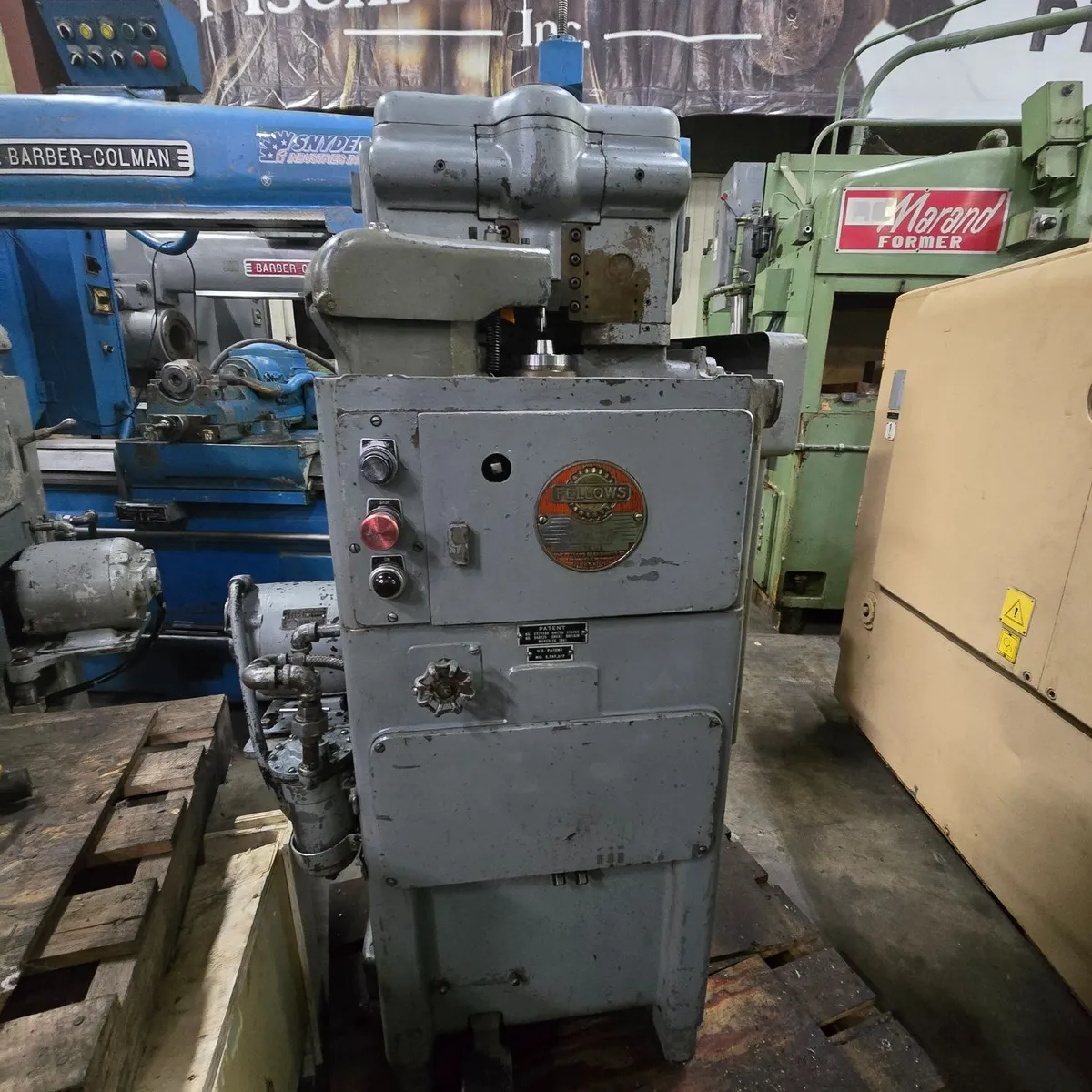

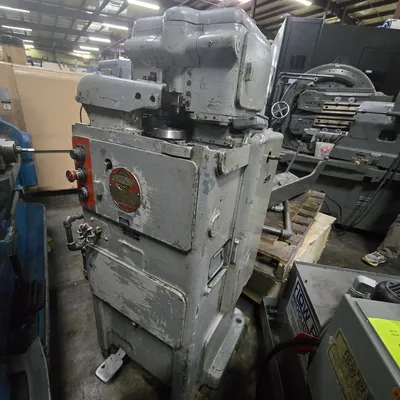

fellows Model 3 fine pitch gear shapers , equipped with tailstocks and centers (3 available)
fellows Fine pitch vertical gear shapers

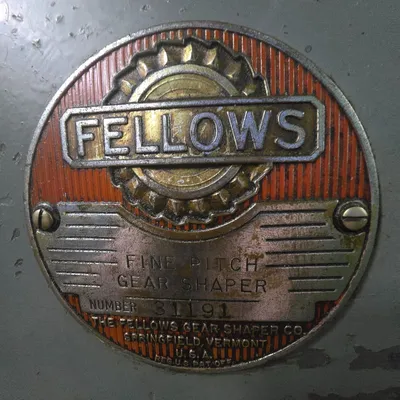

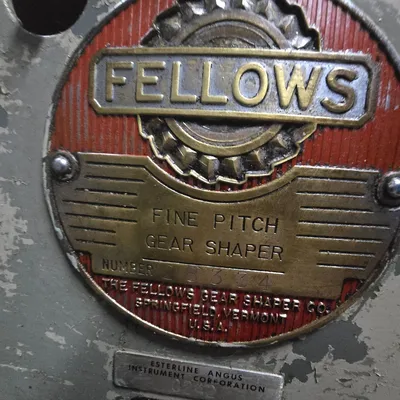

Model #3 Fine pitch s/n 31191, 28334, 28346
3 available
2 w/ tailstocks
these fine pitch Gear shapers can be inspected under power
with proper notice . the machines are located in our plant
and would be able to show under power with proper notice
Machine specs are as follows:
max diameter gear 3"
max pitch 120 dp
max face width 1/2"
max strokes per minute 2000 spm
machine space 2x2x3' tall
Machine weight 1,000 lbs
machines are equipped with
spur guides

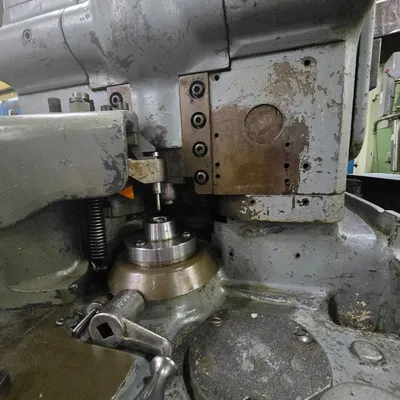

pinion support & tailstock
foot pedal for table clamping
misc tooling and gears
contact rich piselli to view these machines under power
or set up an inspection at Rich@pisellient.com or email
for a formal quote and pricing
thank you
Rich Piselli
