Gleason Model #2A straight Bevel Gear Generator, in plant under power, good running condition ,

Gleason Straight Bevel gear generating machine
model 2A
good running condition, in plant under power

These machines are Suitable For The Cutting Of Straight
Bevel Gears & Pinions Up To 4.5" In Diameter, 7/16" Face
Width & Up To 16 DP (1.6 Module) utilizing rotary disc
type cutters for the cutting process

EQUIPMENT / FEATURES:
Hydraulic Double Acting Chucking Mechanism (TBD)
Self Contained Hydraulic System
Self Contained Coolant System GLEASON
Automatic Counter & Stop

PRINCIPAL SPECIFICATIONS:
Maximum Pitch Diameter 4.5"/(114mm)
Maximum Cone Distance 2.25"/(57mm)
Maximum Face-Width .43"/(11mm)
Work Head Angle 0 To 90 Degs
Coarsest Diamteral Pitch (Mod) 16 DP/(1.59 Mod)
Diameter Taper Hole In Work-Spindle
At Large End Of Taper 1.496"/(38mm)
Work Spindle Taper (Per Ft.) .5"/(12.7mm)
Depth Of Taper 3"/(76.2mm)
Max Dist, Spdl Nose To Machine Center 5"/(127mm)
Min Dist, Spdl Nose To Machine Center 1.25"/(31.75mm)
Index Range 10 To 120
Pressure Angle 20 Degrees
Cutter Speed 63-559 FPM Feed Per Second (Per Tooth) .72 To 24
Main Drive Motor .75 HP/1800 RPM
Overall Machine Length 39.5"/(1003mm)
Overall Machine Width 26.5"/(673mm)
Overall Machine Height 60"/(1524mm)
Approx Mach Net Wt 3,425 Lbs./(1553 kGs)

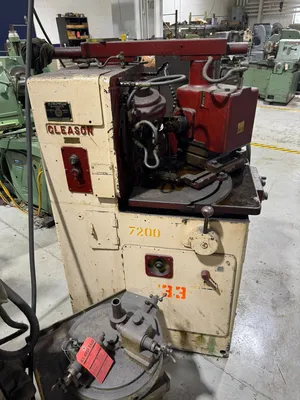

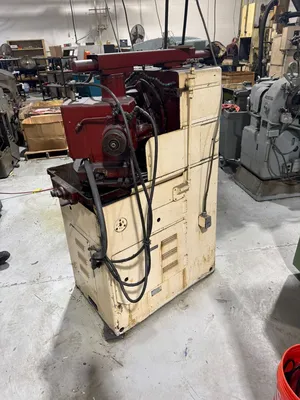

Machine is equipped as inspected and as photographed
machine has an assortment of change gears
power requirements to be confirmed

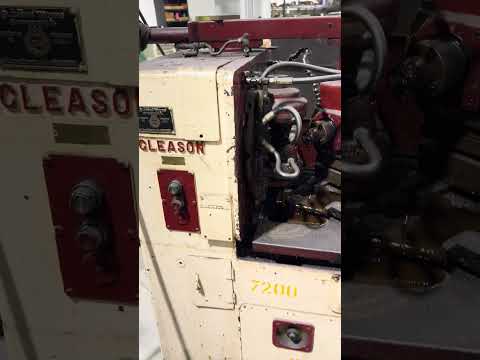

video of machine under power in plant available

This machine can be inspected under power in statesville NC
facility if moved from existing plant location in good
running condition. call for video of machine running under
power. visit our website at www.pisellient.com to request
a formal quote & Pricing or contact Rich Piselli
at Rich@pisellient.com

thank you
Rich Piselli
