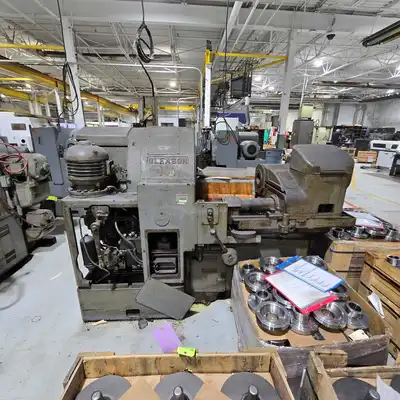

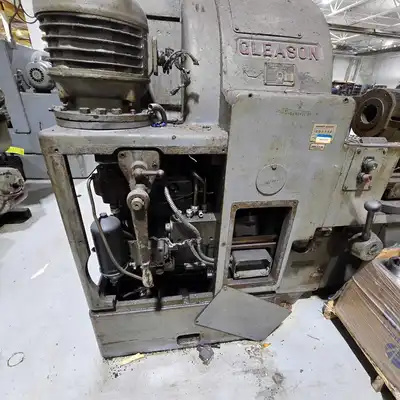

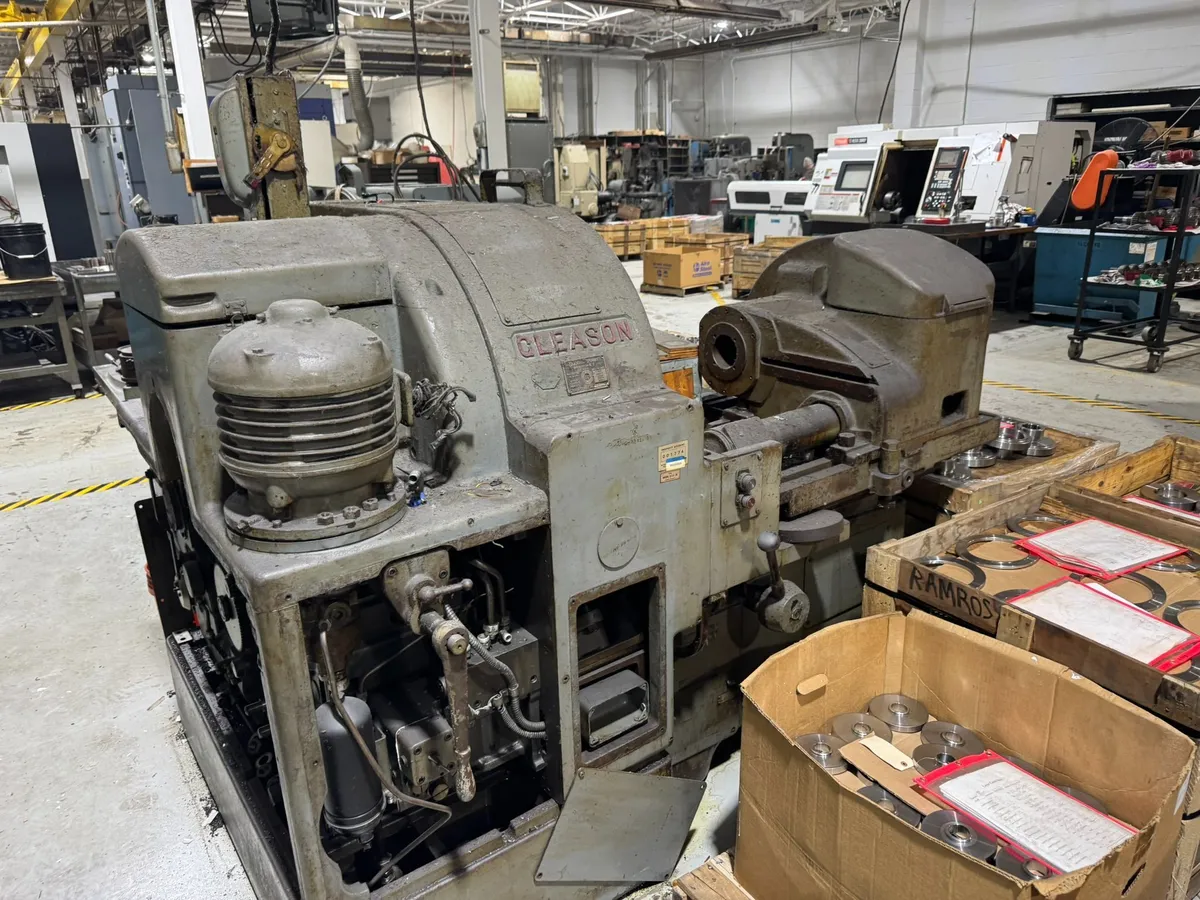

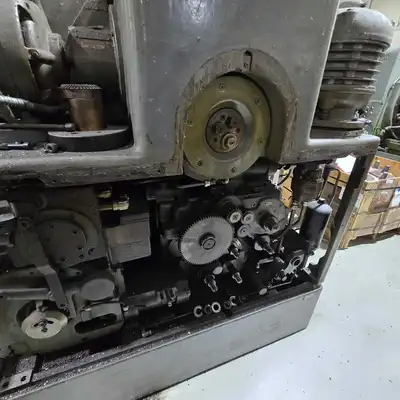

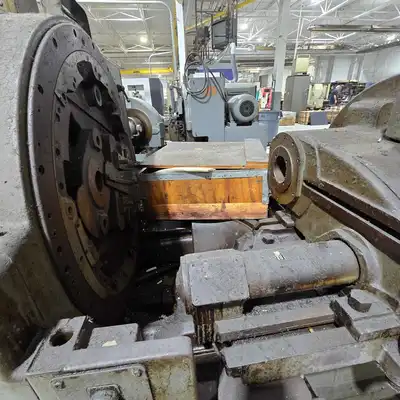

Gleason Model 14 coniflex Straight bevel gear generator , 24" diameter , 3 DP, s/n 25822

Gleason straight Bevel Coniflex Gear generators
Model 14 coniflex

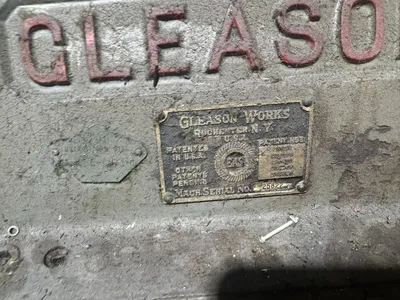

s.n 25822

this machine can be inspected under power in our statesville NC. facility
with proper notice after rebuild . please contact us for under power inspection , videos

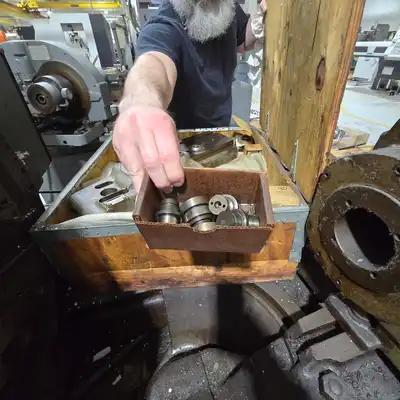

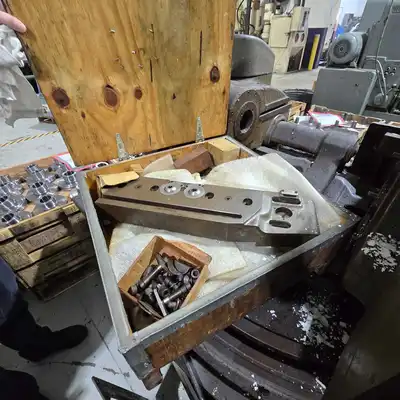

& tooling, etc.

Machine specifications:
Max. Pitch Diameter of Gear 24"
Max. Cone Distance 12"
Max. Face Width 3.5"
Stroke Length 0.5" to 4.25"
Max. Pitch 3 D.P.
Pitch Angle 5˚42' to 105˚
Extreme Ratio 10:1
Stroke Rate 64 strokes/min
to 495 strokes/min
Machine weight 8500 KG

contact us today to inspect machine under power . we reserve the right
to sell machines to the first come buyer . please give us an order to
have this machine rebuilt!
visit www.pisellient.com to view machines or contact Rich At
rich@Pisellient.com for a formal quote request

thank you
rich Piselli
704 609-0766
