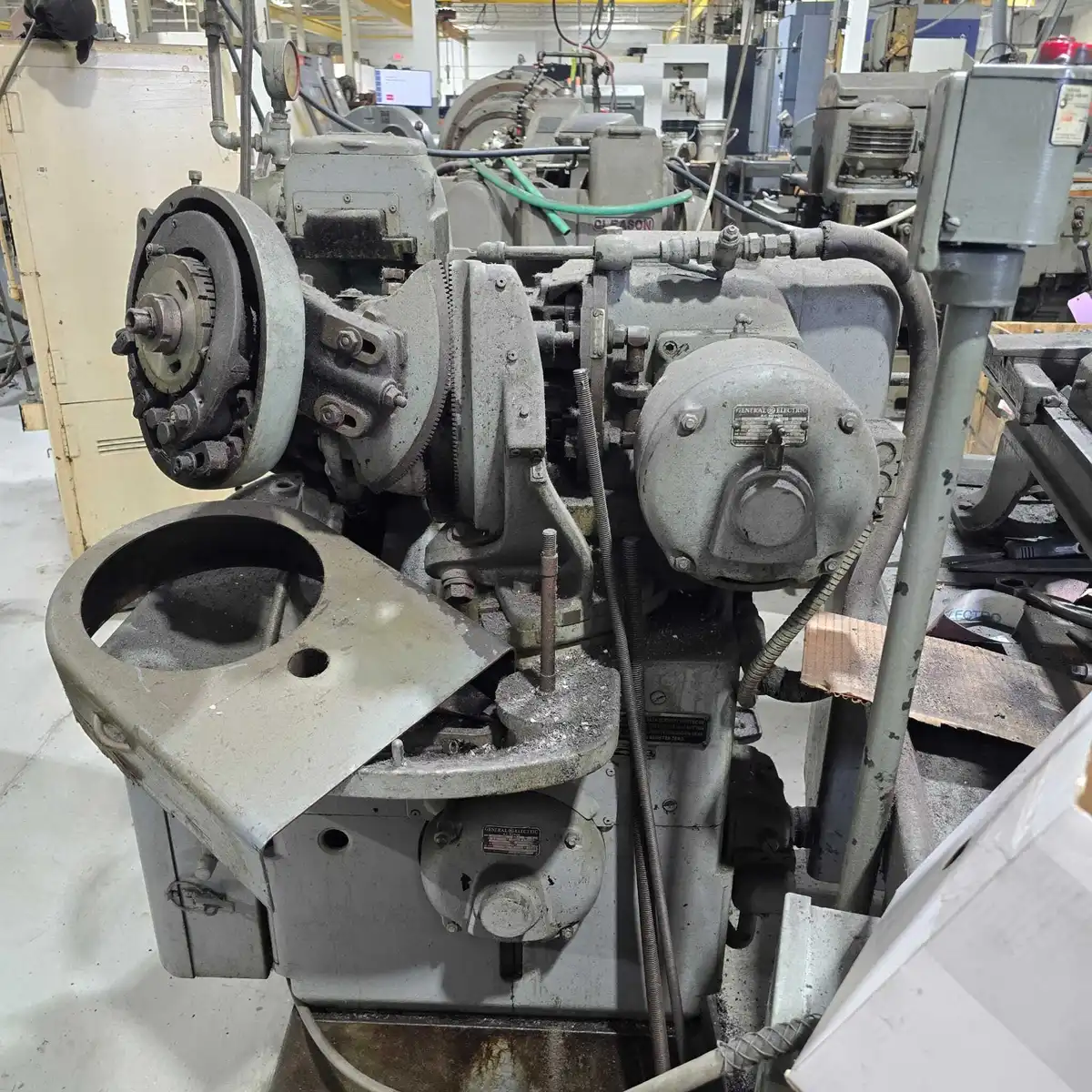

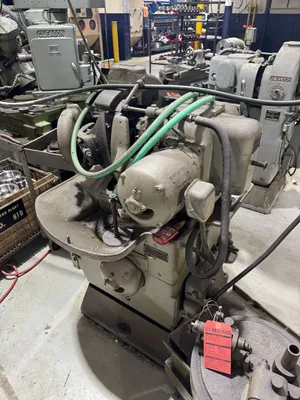

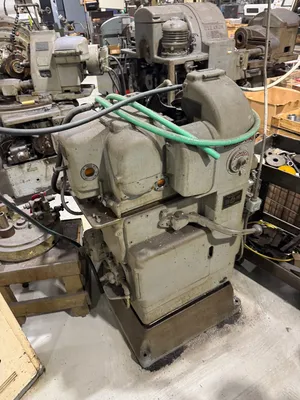

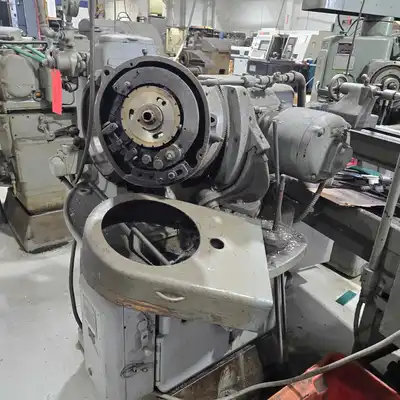

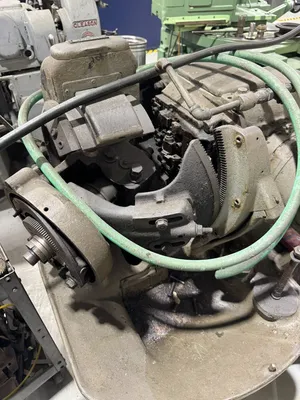

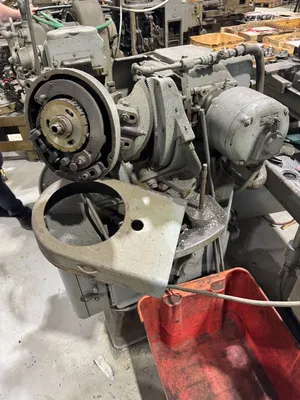

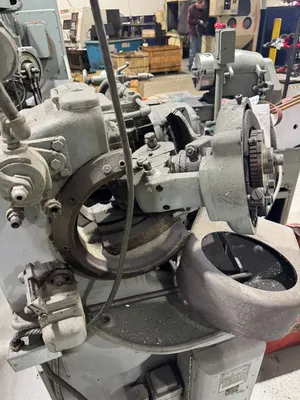

3” GLEASON STRAIGHT BEVEL GEAR GENERATOR 4.5" diameter capacity 2 Available with gears and tooling s/n's 15685 & 19065

3” GLEASON STRAIGHT BEVEL GEAR GENERATORs

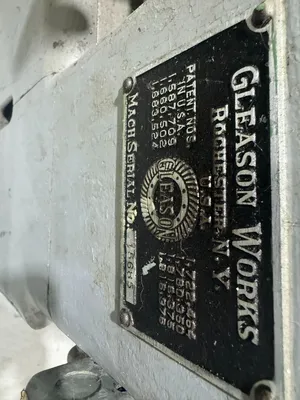

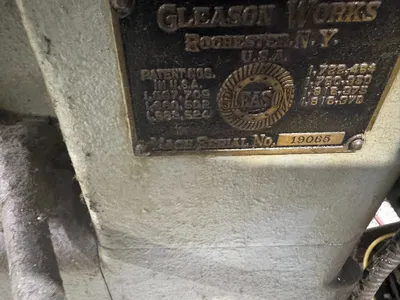

s/n's 15685 & 19065

Suitable for the cutting smaller diameter precision straight
bevel gear and pinion sets up to 4.5” (113mm)
pitch diameter, 2.25” (57.15) cone distance, up to a maximum
10 DP (2.5 module)

PRINCIPAL SPECIFICATIONS:
Longest cone distance 2.25” (57.1mm)
Shortest cone distance 0
Maximum pitch angle (shafts at 90-degrees) 75 degrees 58 min.
Minimum pitch angle (shafts at 90-degrees) 14 degrees 2 min.
Extreme ratio 4 : 1
Minimum P.D. of 4:1 ratio 4.45” (113mm)
Minimum P.D. of 2:1 ratio 4” (101mm)
Minimum P.D. of 1:1 ratio 2.8” (71mm)
Coarsest pitch (module) 10 DP (2.5 module)
Smallest pitch: (limited only by cutter point-width)
Longest face .87” (22mm)
Range of index (number of teeth) from 10 to 80 teeth
Diameter of work spindle taper hole (large end) 1.06” (27mm)
Taper per foot .5” (12mm)
Depth of taper 3” (76mm)
Diameter of hole through spindle .63” (15.9mm)
Max./Min. distance from machine centerline
to work spindle nose 1.22” – 3.23” (31 – 82mm)
Cutting speed per minute 196-795 strokes/min.
Feed, time per tooth, in seconds per tooth 1.5 to 30 seconds
Horsepower/speed of two motors .75 HP 1800/1500 rpm
Floor space 33”x 35” (838x889mm)
Machine approximate net weight 2500 lbs. (1125 kGs)

Machines are equipped with the following

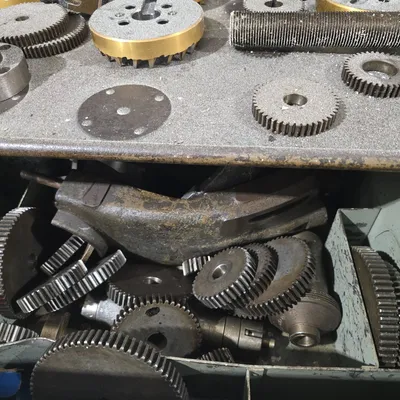

change gears

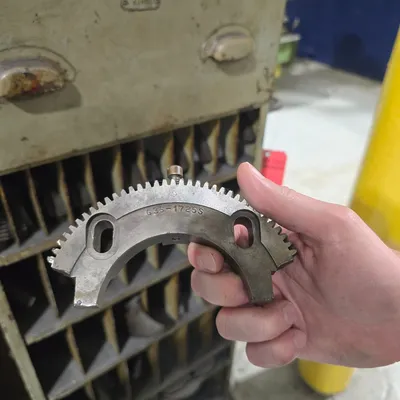

segments

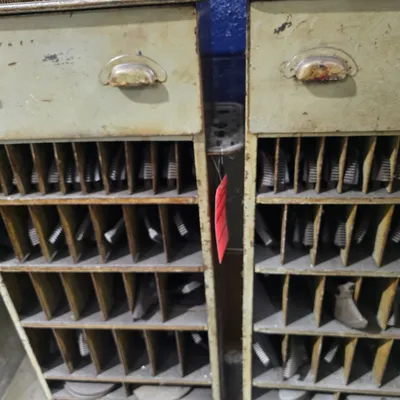

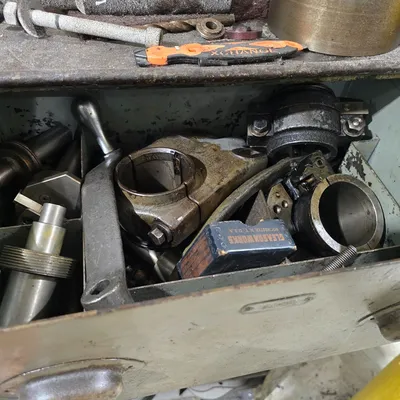

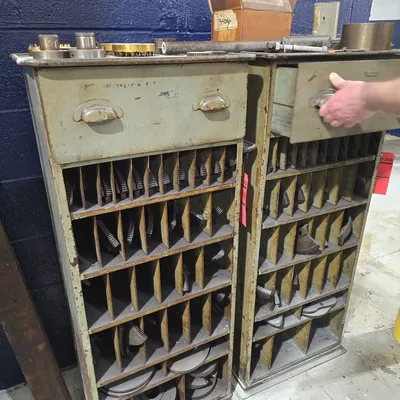

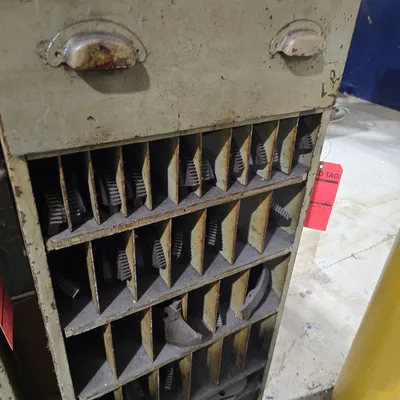

additional tooling
