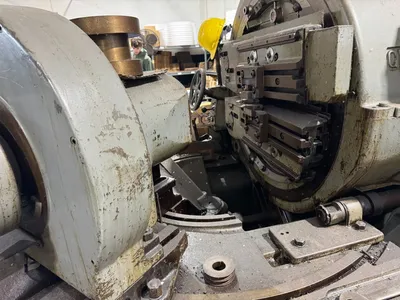

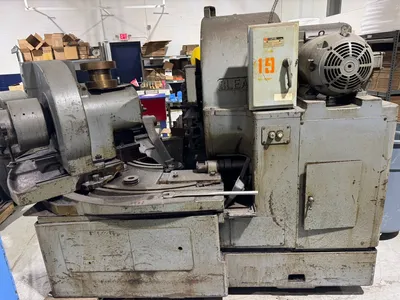

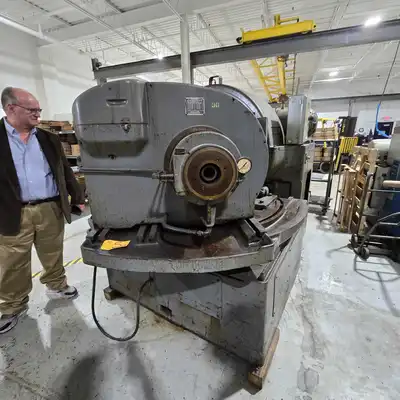

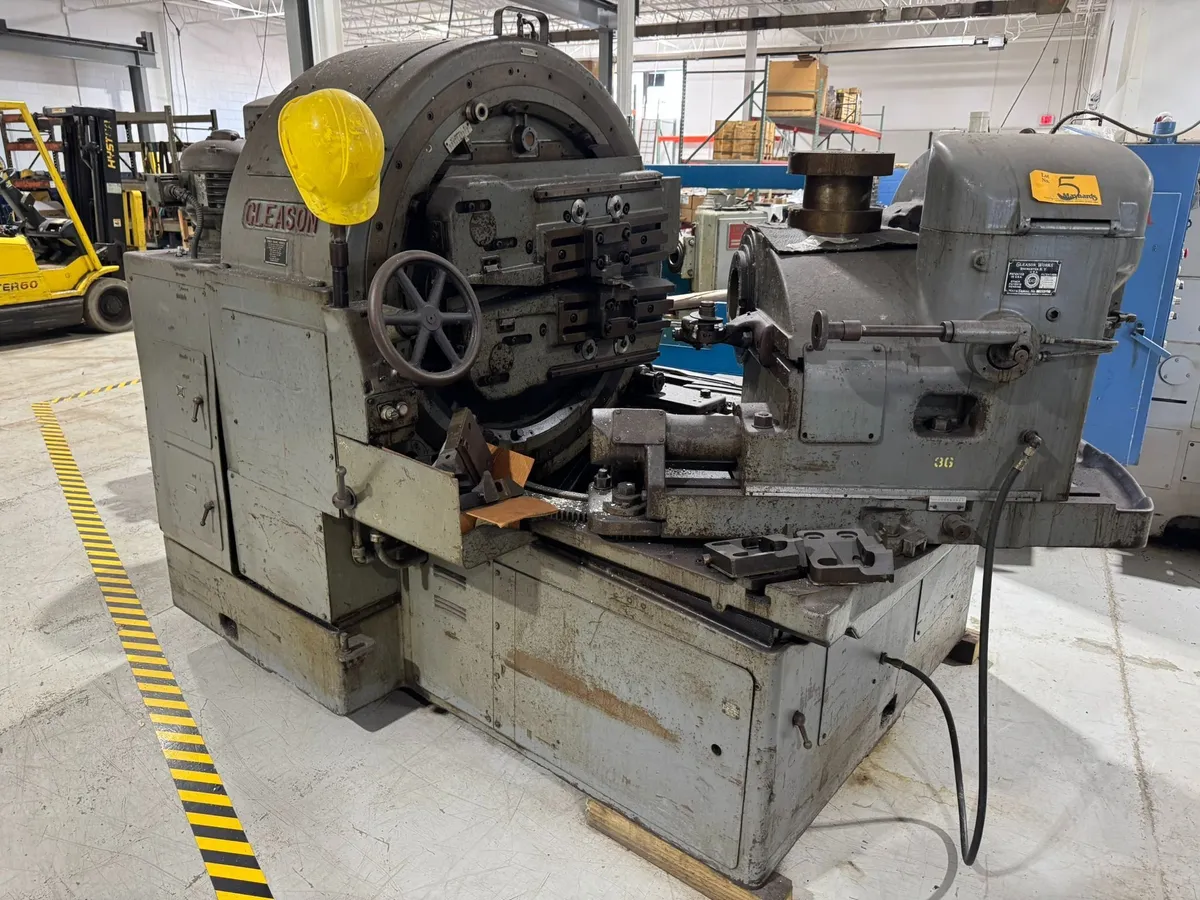

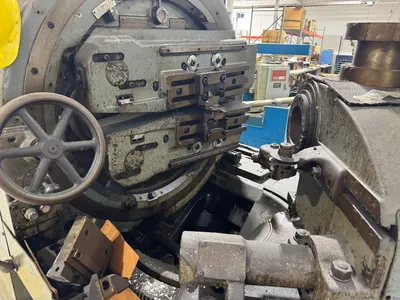

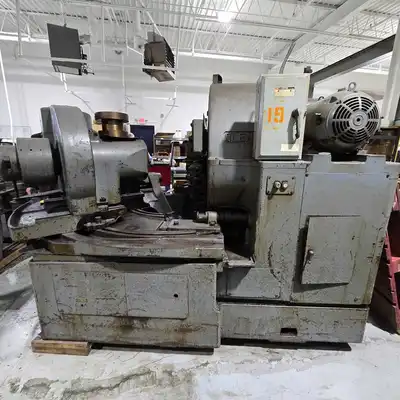

Gleason Model 24A straight Bevel Coniflex gear cutter for 35" Pitch diameter gears , gone through Excellent Condition s/n 24873

Gleason straight bevel Coniflex gear generator
model 24A

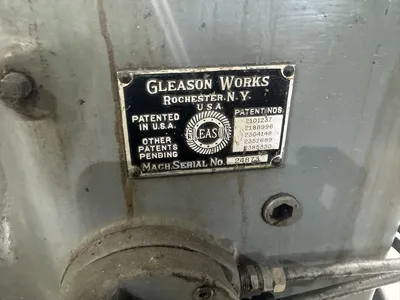

s/n 24873

this machine is excellent for producing large diameter
straight bevel gears . machine is equipped with Coniflex
allowing it to cut up to 35" Diameter gears , 1-1/2 DP .
assortment of gears and setting gauges

EQUIPMENT / FEATURES: Catalog specs

• universal feed cam, double-track, for roughing
and/or finishing work
• hydraulic chucking attachment (lw/draw-bar & nut)
• self contained hydraulic system
• full complement of electrics (motors/controls)

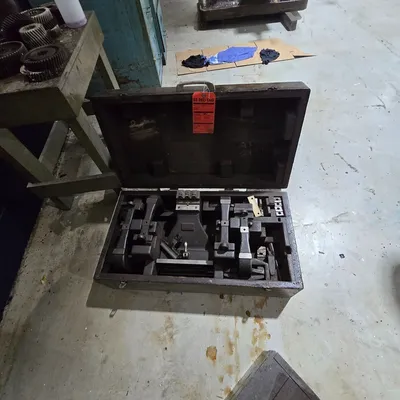

• set of tool setting gauges w/proof block
• cutter length gauge
• stock dividing gauge (TBD)
• roughing yoke & bushing
• one (1) set of standard tool holders (TBD)
• one (1) set of “finishing” tool-holders (TBD)
• one (1) set of “Tanruf single-blade tool-holders” (TBD)
• one (1) set of “Tanruf double-blade tool-holders” (TBD)
• one (1) set of tool-holder extension blocks (TBD)
• tool & gear cabinet w/good assortment of change gears (TBD)
for index, roll, ratio of roll, feed and speed
• GLEASON auto-stop
• guards/covers
• misc. wrenches, spanners, operator's tools
• operator's manual, parts list, wiring & hydraulic diagrams

PRINCIPAL SPECIFICATIONS:

Longest cone distance (1 3/4" stroke) 18" /(457mm)
Shortest cone distance 0"
Maximum pitch diameter:
10 to 1 ratio 35.5" /(901mm)
2 to 1 ratio 31.75" /(805mm)
1 to 1 ratio 25" /(635mm)

Maximum pitch angle (shafts at 90 degrees) 84.18 degrees
Minimum pitch angle 5.42 degrees
Extreme ratio 10 to 1
Maximum pitch 1.25 DP /(20.4 module)
Maximum face length 6" /(152mm)
Index range: 10 to 100 inclusive and most numbers up to 200
Work spindle bore:
diameter (large end of taper) 6" /(152mm)
taper per foot .75" /(18mm)
depth of taper 6" /(152mm)
diameter of thru bore 5” /(127mm)
Spindle nose to machine center 5-24” /(127-660mm)
Speed and Feeds:
Cutter speeds (strokes per minute) 22 to 170
Feeds (seconds per tooth) (22 feeds) 23 to 645
Floor space required 74" x 105" /(1880x2660mm)
Machine net weight 24,400 lbs /(11,295 kGs)

You must confirm all tooling and features prior to purchasing
as this machine is presently located in customers plant !!
