gleason model 13 tester , swivel base universal style , inquire for your needs , straight and spiral bevel s/n's 17726 & 15196

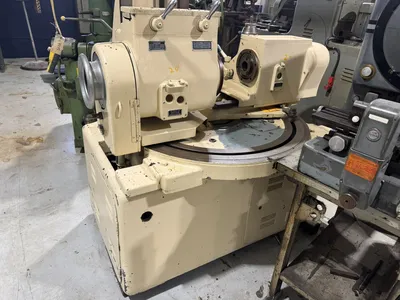

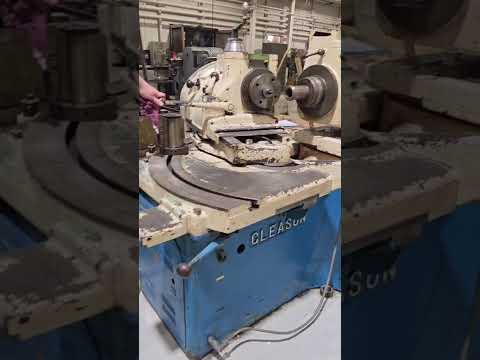

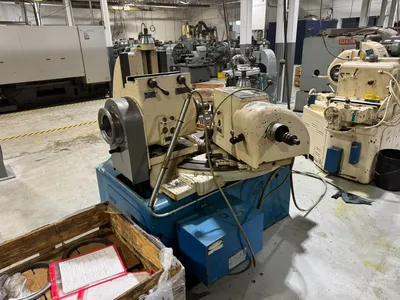

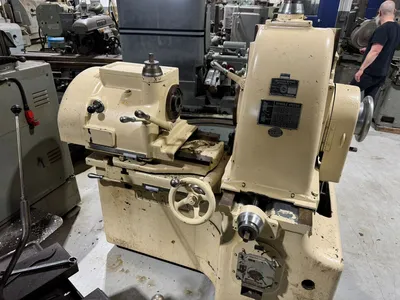

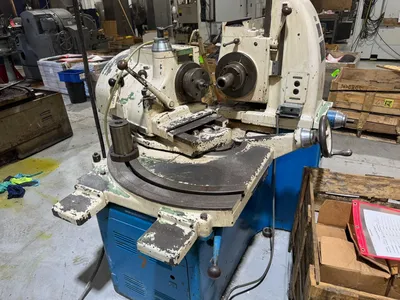

MODEL NO. 13 GLEASON UNIVERSAL ANGULAR BEVEL TESTING MACHINE

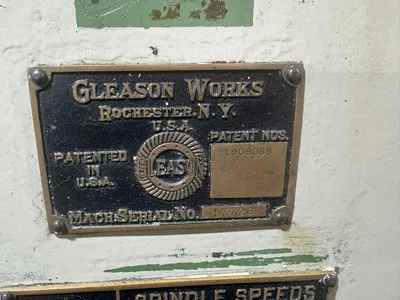

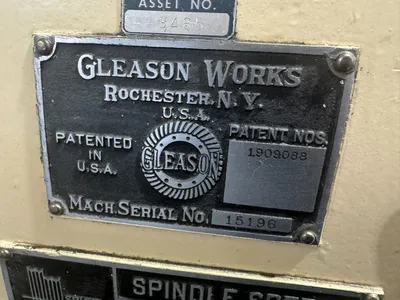

SERIAL NO. 17726 & 15196 w/39 & 14 bores
(2) available

SUITABLE FOR THE RUNNING TESTING/CHECKING FOR SMOOTHNESS
AND QUIETNESS OF OPERATION, AND INSPECTION OF ACTUAL TOOTH
CONTACT, UNDER LOAD, (TOOTH BEARING), ON A WIDE VARIETY OF
STRAIGHT AND CURVED TOOTH BEVEL GEARS OF ANY SHAFT ANGLE,
INCLUDING HYPOID, SPUR, HELICAL, INTERNAL GEARS,
AS WELL AS WORM AND WORM WHEEL COMBINATIONS UP TO 13” MAXIMUM DIAMETER.

PRINCIPAL SPECIFICATIONS:
Maximum diameter gear (nominal) 13" (330.2mm)
Range of angles 0 to 180 degrees
Range of offset pinion spdle:Above center 8" (203.2mm)
Range of offset pinion spdle:Below center 2" (50.8mm)
Max. center distance,
(spurs, helicals and herringbones) 8" (203.2mm)

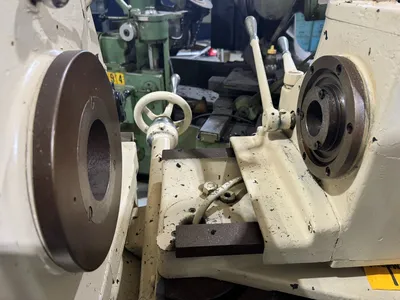

Drive spindle bore (large end) 3-29/32" (99.2mm)
Drive spindle bore, (taper per ft) 39/64" (15.478mm)
Brake spindle bore, (large end) 2-19/64" (58.34mm)
Brake spindle bore, (taper per ft) 1/2" (12.7mm)
Power requirements (TBD) inquire
Floor space 60.5" x 80.5" (1537x2045mm)
Approx. machine net weight 5,200 lbs. (2364 kGs)
Machine is equipped with the following additional items:
additional items and tooling to be determined (TBD)

this machine can be inspected in our statesville NC facility
under power . machine will be gone through and tested and
necessary repairs done as required . we look forward to
working with you on this and other gleason machines. visit
our website for more gleason and other types of gear
machinery at WWW.Pisellient.com or contact Rich Piselli
at rich@Pisellient.com to set up an inspection

thank you
Richard Piselli
