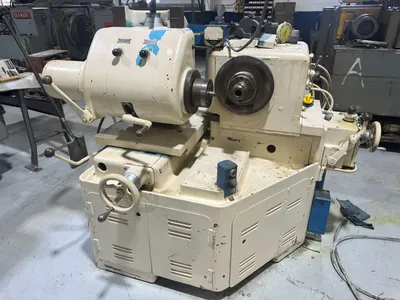

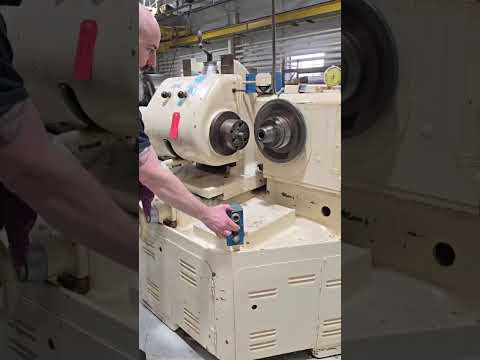

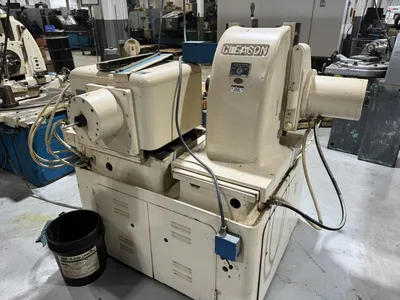

Gleason Model 17A universal hypoid gear tester , 20" diameter , pre-set backlash check excellent condition s/n 26241

Gleason Universal Gear Tester
Model 17A

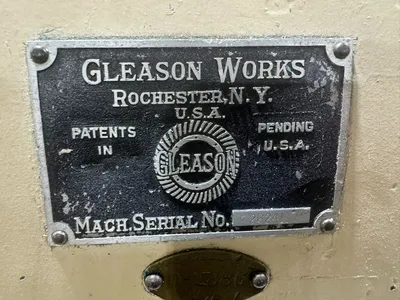

S/N 26241

 Model No. 17A GLEASON Hypoid Bevel Gear Testing Machine, suitable for the testing
 of straight bevel, spiral bevel, and hypoid  gears with shafts intersecting at
90-degrees, with capacity to test gears up to 20" (508mm) pitch diameter

The machine corresponds to the attached copy of factory literature, featuring the
following:

EQUIPMENT / FEATURES:
• hydraulic work chucking cylinders on pinion and gear spindles, (less draw-in bar
& nuts)
• 5-HP, 220/440 volt, 3-phase 60 cycle, 1670 rpm main drive motor
• 3/4 HP, 220/440 volt, 3-phase 60 cycle, 1745 rpm hydraulic motor
• pre-set backlash control
• brake spindle (2-19/64” bore dia. large end)
• adjustable drive pinion spindle  (3-29/32” bore dia. large end) w/crank handle &
graduated dial
• load meter
• guards, covers, handwheels
• full complement of electrics, motors/controls)
• operator’s manual wiring diagram & parts list

PRINCIPAL SPECIFICATIONS:
Maximum offset of gear spindle above or below center of
pinion spindle 5” (88.9mm)
Maximum distance from center of gear spindle to nose of
pinion spindle 12” (304.8mm)
Minimum distance from center of gear spindle to nose of
pinion spindle 6” (152.4mm)
Maximum distance from center of pinion spindle to nose of
gear spindle: 7.75” (196.85mm)
Minimum distance from center of pinion spindle to nose of
gear spindle 4.13” (104.8mm)
Maximum diameter of gear with “zero” offset
of gear spindle 20” (508mm)
Machine dimensions (approx.) 60” x 73” x 60”
Machine net weight 5,300 Lbs.

This machine can be inspected under power in my Statesville, NC Plant with proper
notice or in customers plant prior to removal
