Tos model FO-16 Universal Gear hobber , 63" diameter , differential , Tailstock , good running condition in plant

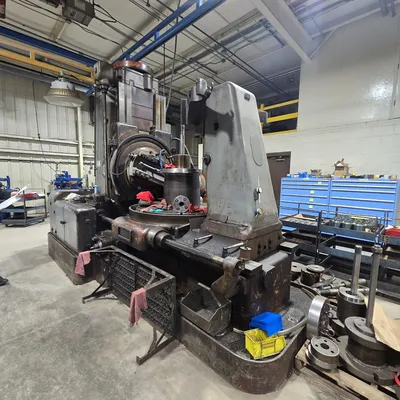

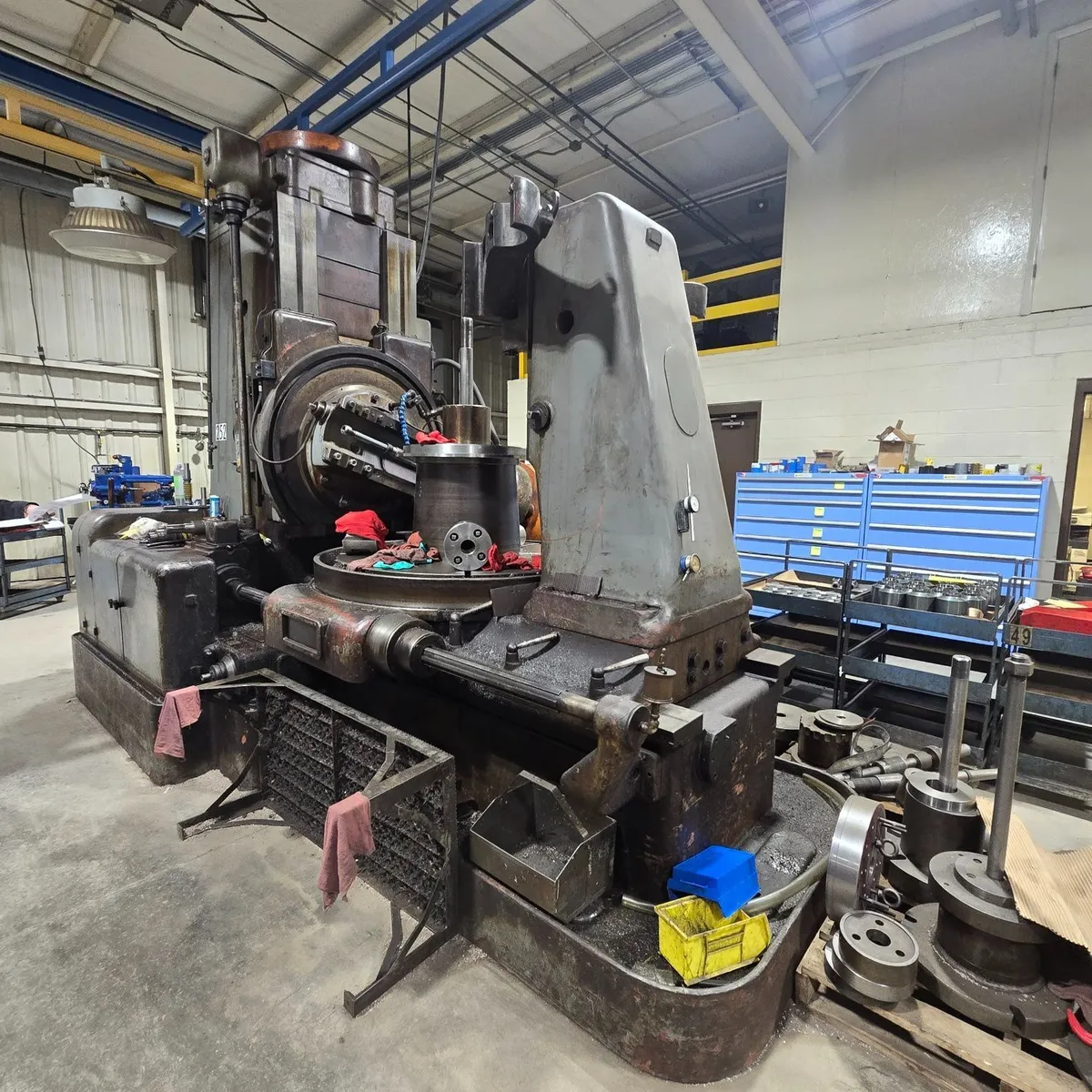

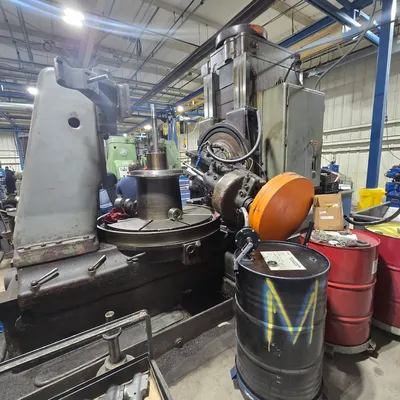

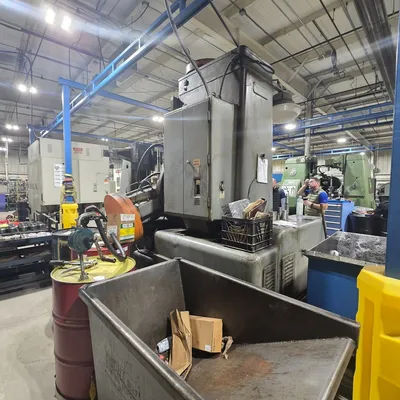

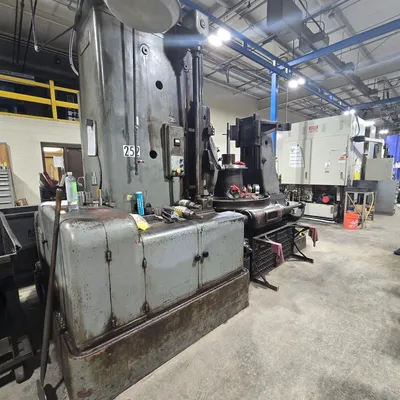

Tos Vertical Gear Hobbing machine

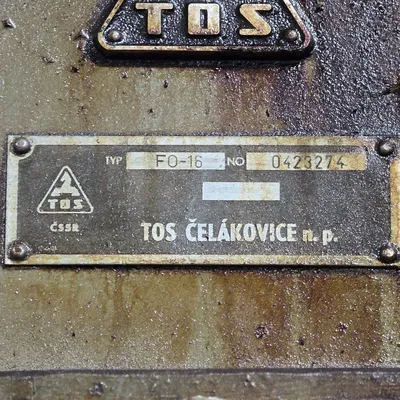

Model FO-16
s/n 0423274
this machine is a good universal Gear Hobbing machine
it can cut larger diameter gears with tailstock
removed . Great for any job shop
MACHINE SPECIFICATIONS:
Max Dia. Gear...................................63.0" / 90"**
Max Diametral Pitch.............................1.25
Max. Face Capacity, Straight....................22"
Number of Teeth..................................12-448
Diameter of Work Table............................54"
Diameter of Bore in Work Table.....................7.25"
Depth of Bore in Work Table........................26"
Max. Distance of Hob to Work Center................45"
Min. Distance of Hob to Work Center................4"
Max. Distance of Hob Axis to Work Table............41"
Min. Distance of Hob Axis to Work Table............16"
Vertical Travel of Hob.............................25"
Max. Diameter of Hob................................10"
Max. Length of Hob..................................11"
Hob Speeds (8 Steps)................................16-80 RPM
Vertical Feeds (36 Steps) inches/table rev........... .01-.25"
Horizontal Feeds of work table (36 steps)
in./table rev..................................... .002-.06"
Tangential Feeds (36 Steps) in./table rev..............005-.16"
Main Motor............................................16 HP
Total Power...........................................37 HP
Floor Space (approx.).................................170" x 80"
Machine Weight (approx.)..............................50,000 lbs
**Upon Measurement machine looks to capable of almost 90" diameter capacity
MACHINE EQUIPPED WITH:
Single Indexing (TBD)

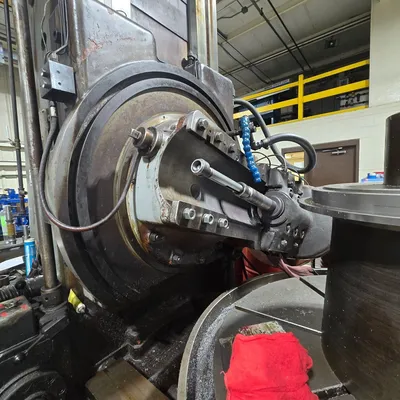

Universal hobbing/Milling Head
Misc Change Gears
hob Arbor
Tailstock
Machine looks to be in excellent mechanical condition. The machine can be
inspected under power in our customers plant with proper notice.
Call for additional questions and photos!!
contact rich Piselli at Rich@PiselliEnt.com for more info
or formal price quote
