Pfauter Model P900 universal Gear hobber, 36" diam cap. , w/ differential , tailstock , good running condition in customers plant s/n 21796

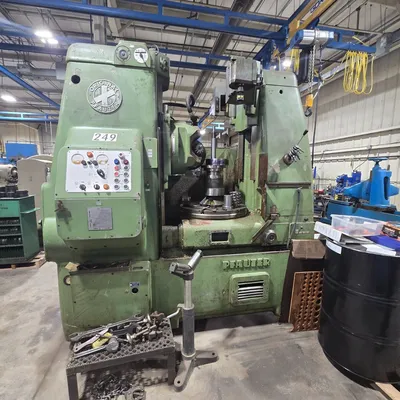

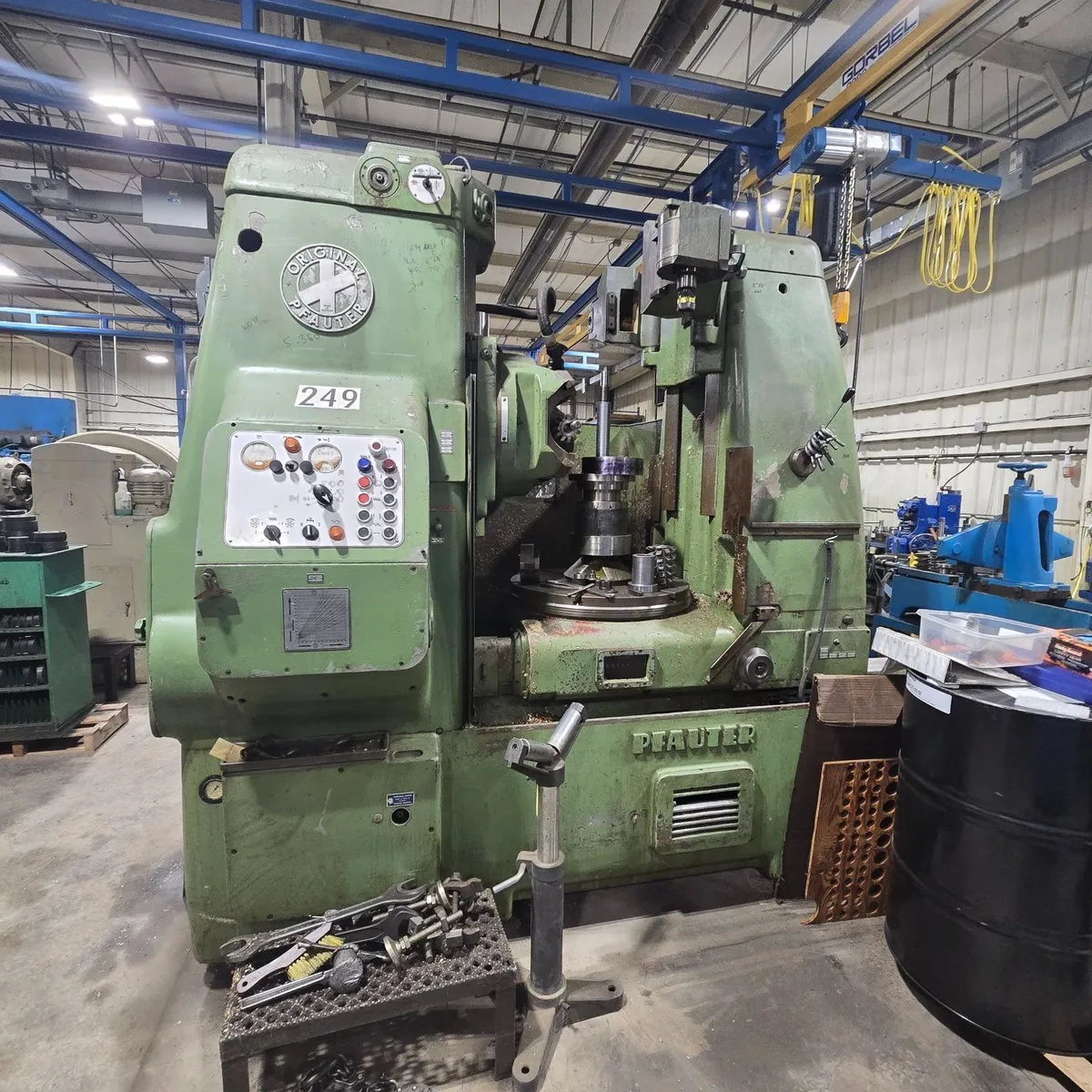

Pfauter Gear Hobbing Machine
Model P-900
S/N 21796
this machine is running in a gear shop in PA. It is the pfauter
Turbo model which cuts gears with a larger face width then the
standard model. Machine is good condition
Machine general specifications are as follows:
Max Gear Diameter 900mm/36"
Module Pitch 10/ 2.5 DP
Max Face width 24"/ 600mm
Max hob length 215mm/8"
Max hob diameter 192mm/7.5"
Max hob RPM 390 RPM
Min. no. of teeth 8
Worktable diameter 700mm/27"
Worktable bore 160mm/6.25"
Machine weight 8.5 KG/18,000 lbs
Machine is equipped with the following:
Hob arbor (1-1/4" Diam)
Swing away tailstock
Misc change gears
chip pan & coolant tank
Misc tooling
Machine Guarding
Manuals available
Please contact us to inspect machine under power at our
customers plant Prior to removal s machine is moving soon.
we will be shipping to our Statesville NC facility if not sold
beforehand. Contact rich piselli at Rich@Pisellient.com
for a formal quote and pricing.
thank you
Richard Piselli
