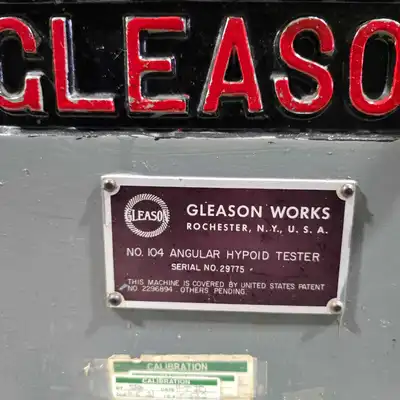

Gleason 104 Angular Hypoid Tester, 4.25" diameter capacity , good condition s/n 29775

gleason gear testing machine
model 104
s/n 29775

the Model No. 104 GLEASON Angular Hypoid Bevel Gear Testing Machine
is suitable for testing the running qualities, as well as tooth
spacing or concentricity of bevel and hypoid gears and pinions up
to 4.25" (108mm) diameter

The machine corresponds generally to the attached copy of factory literature,
featuring the following:

EQUIPMENT / FEATURES:

-one pair of standard ¾” x ½” (# 7-Taper) gear and pinion spindles
(other spindles are interchangeable)
-1/2 HP, 3-phase, 60 cycle, 220440 volt
3550 rpm main drive motor providing forward/reverse
-spindle rotation at variable speeds thru multi-stop
pulley/belt ratio
-1/50 HP, single phase, 115 volt 1750 rpm rolling test motor
-electric work-head brake system for driven spindle
-dial indicator assembly for "split-head" when
testing gear/pinion sets in hand rolling mode
-manual chucking, pedestal base, full electrics/controls
-operator’s manual, parts list, wiring diagrams (TBD)

PRINCIPAL SPECIFICATIONS:

Axial distance from spindle nose
to center of machine (maximum) 3.5" (88.9mm)
Axial distance from spindle nose
to center of machine (minimum) .5" (12.7mm)
Diameter of gear (maximum) 4.25" (107.95mm)
Offset of gear spindle above or below
center of pinion spindle (maximum) 1.5" (38mm)
Range of shaft angle 0 to 180 degrees
Power test speeds (r.p.m.) 875-1750-3500-700-14,000
Rolling test speed (r.p.m.) 7.2
Machine dimensions 25"x 25"x 50" (635x635x1270mm)
Machine approximate net weight 1,450 lbs. (648 kGs)

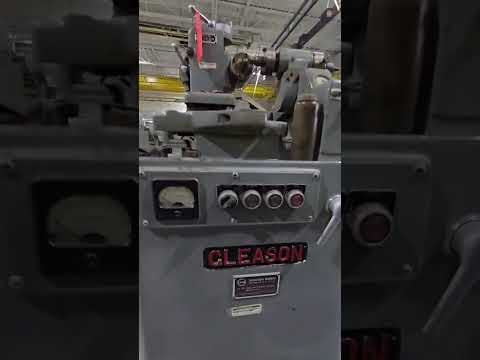

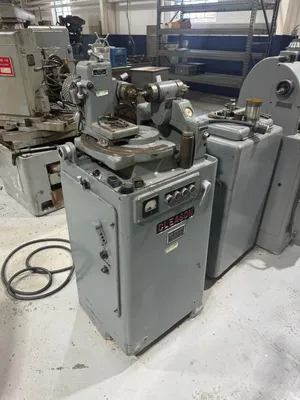

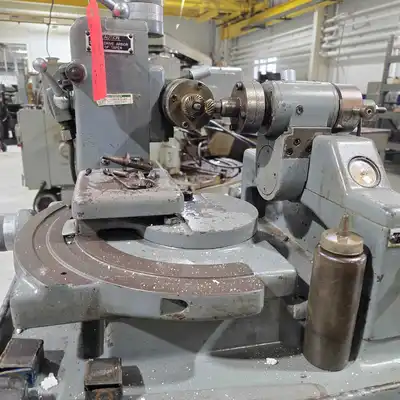

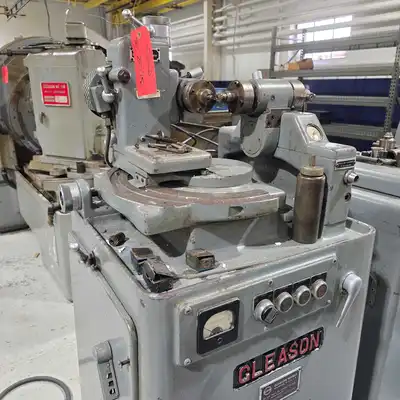

Machine is equipped as photographed
please refer to photos as presented on this quotation !!!!

contact us to view machine at our warehouse when delivered

we look forward to working with you

contact us for further information and detailed catalog specs

or visit www.pisellient.com website to search our vast gear machine inventory

thank you

rich Piselli
