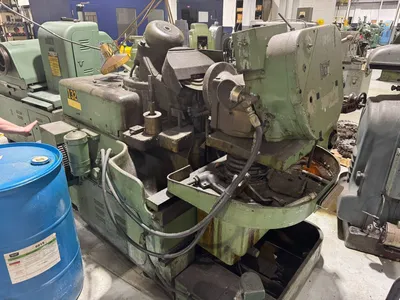

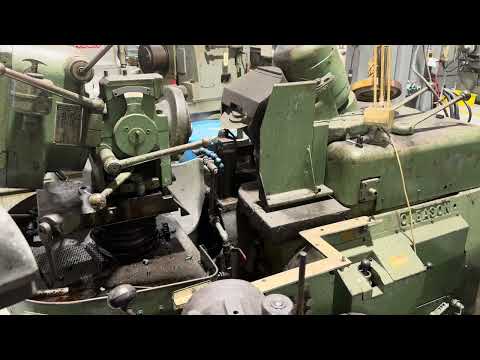

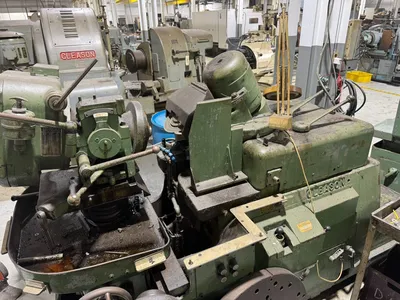

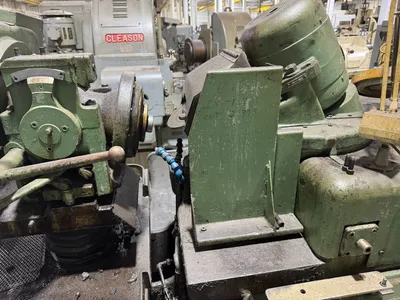

Gleason no.13a Spiral Bevel cutter Sharpener, in plant under power , inspect , good condition s/n 26583

GLEASON "HYPOID" SPIRAL BEVEL GEAR CUTTER SHARPENER
Model 13A

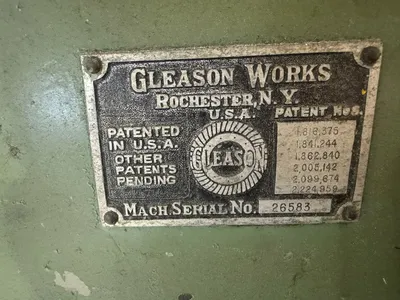

s/n 26583

Suitable for the full automatic sharpening of spiral bevel cutters from
1.3” to 21” diameter, as employed on the GLEASON 5-cut methodology
spiral bevel gear generators, as well as cutters for GLEASON straight bevel
" Revacycle" machines, and disc-type interlocking cutters for 104 and 114
“Coniflex” straight bevel generating machines

EQUIPMENT / FEATURES:
Base machine complete with splash guards, covers
Complete coolant system pump, tank, and piping
One (1) index plate (72-T)
(additional index plates available at extra cost)
One (1) adaptor for large diameter cutters
“Long-throw” feed cam (1.625” travel) Part #45620180 for larger diameter cutters
Rotating diamond wheel dresser
Diamond setting gauge
Automatic stop
Self contained hydraulic system
Full complement of electrics (motors/controls)
for 230/460 volt, 3-phase, 50/60 cycle operation

PRINCIPAL SPECIFICATIONS:
Diameter of spiral bevel cutters 3.5” to 18” (89 to 457mm)
Diameter of revacycle cutters 16” & 18” (406, 457mm)
Diameter of Coniflex cutters 9” & 15” (229, 381mm)
Stock removed per cycle (roughing .007" (0.18mm)
Stock removed per cycle (finishing) .002” (0.05mm)
Grinding time per blade 5 seconds
Type of wheel utilized Disc-Type 30-degree bevel
Size of wheel 12"x .75" (305x19mm)
Grinding wheel bore diameter 4" (101.6mm)
Wheel drive motor 2 HP - 1800 rpm
Feed drive motor 1 HP - 1800 rpm
Coolant pump motor 25 HP - 3600 rpm
Hydraulic unit motor 2 HP - 1200 rpm
Floor space required 48"x 91" (1240x2310mm)
Machine approximate net weight 9,000 Lbs. (4083 kGs)

call for machine brochure or Visit www.Pisellient.com for more
info.!!
