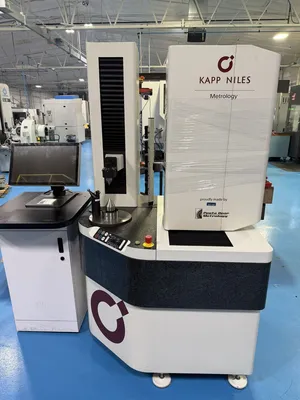

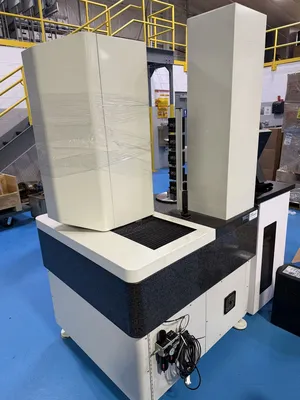

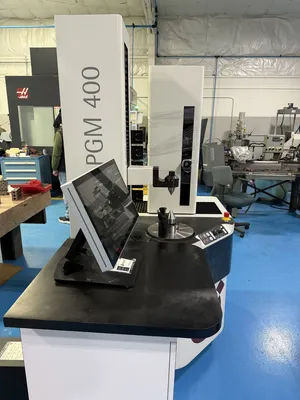

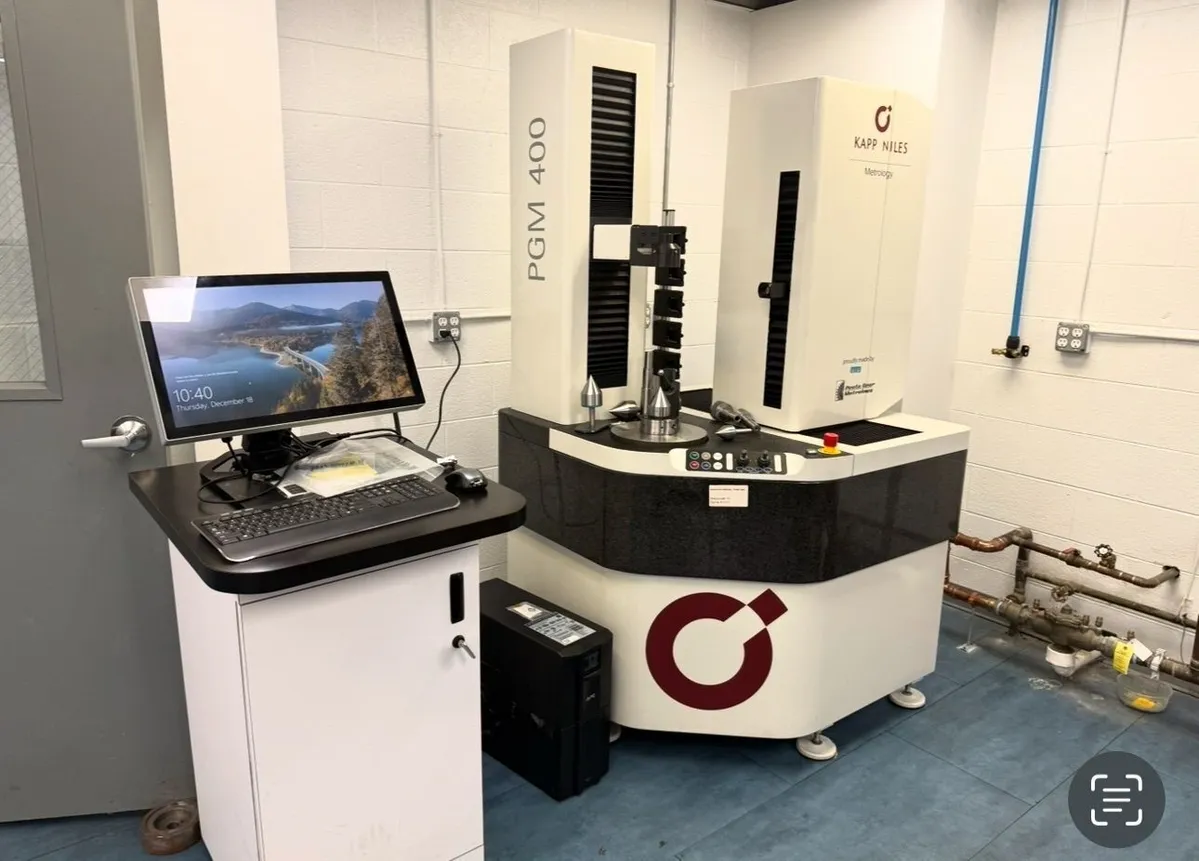

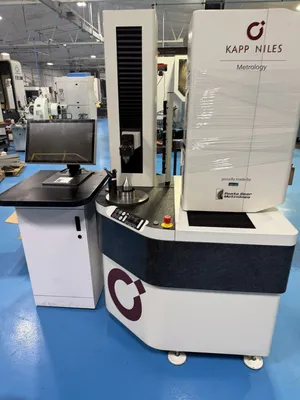

KAPP NILES / Penta Gear model PGM 400 cnc gear tester , 16" diameter capacity , full service and warranty, Like new condition 2018

Kapp Niles 4 axis CNC Gear inspection machine
Model PGM 400
mfg New in 2018
Like new condition / warranty / training

The PGM 400 gear measurement system is capable of inspecting
Spur , Helical gears of various configurations, additional software
can allow you to inspect gear cutting tools like hobs, shaper
cutters, & shaving cutters. Worms and straight bevel gears can
also be inspected with added software options

Machines general specs:
probe resolution 0.03um
travel range
x-axis ( horizontal ) 270 mm
y-axis horiz movement Measuring slide 480 mm
z-axis vert movement measuring slide 480 mm
C-axis - Rotary table diameter 228 mm
weight capacity 180 kg
maximum diameter part 450 mm
maximum length of part between centers 760 mm
standard probe ball stylus 3.0 mm
Precision calibration Spheres 19.05 mm & 12.7 mm
(for calibration of probe tips and table center for location)
Bottom dead center 25 mm
optional centers available 54.5 mm & 75 mm
environmental temp 68 degees +/-3.0 F
machine weight 1,300 kg

equipped with many features such as :
windows 7 operating system
recordable CD rom drive
ethernet card
17" flat screen color monitor
lexmark laser printer
operator workstation desk
full charting capabilities
3D feature single point scanning
linear motors
motorized tailstock
Renishaw precision scanning probe head

call for full quotation and options with the particular
machine, as it has lots to offer
6 month warranty
operator training in Ohio with run-off

contact Rich piselli for more information and to receive
formal price quotation for this late model machine at
Rich@Pisellient.com or call 704 609-0766

thank you
Richard Piselli
