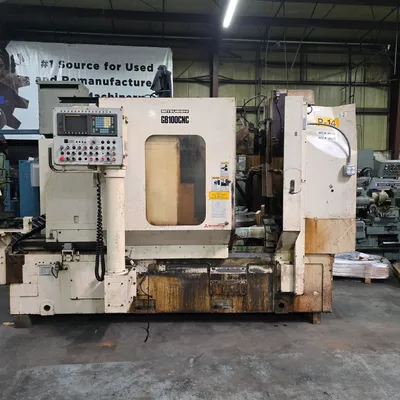

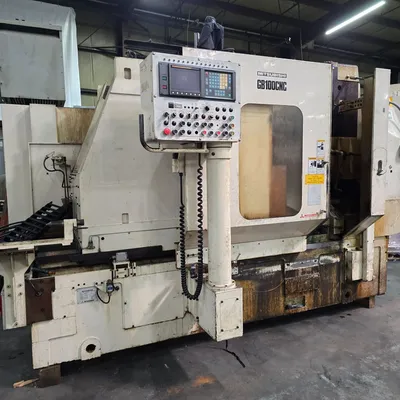

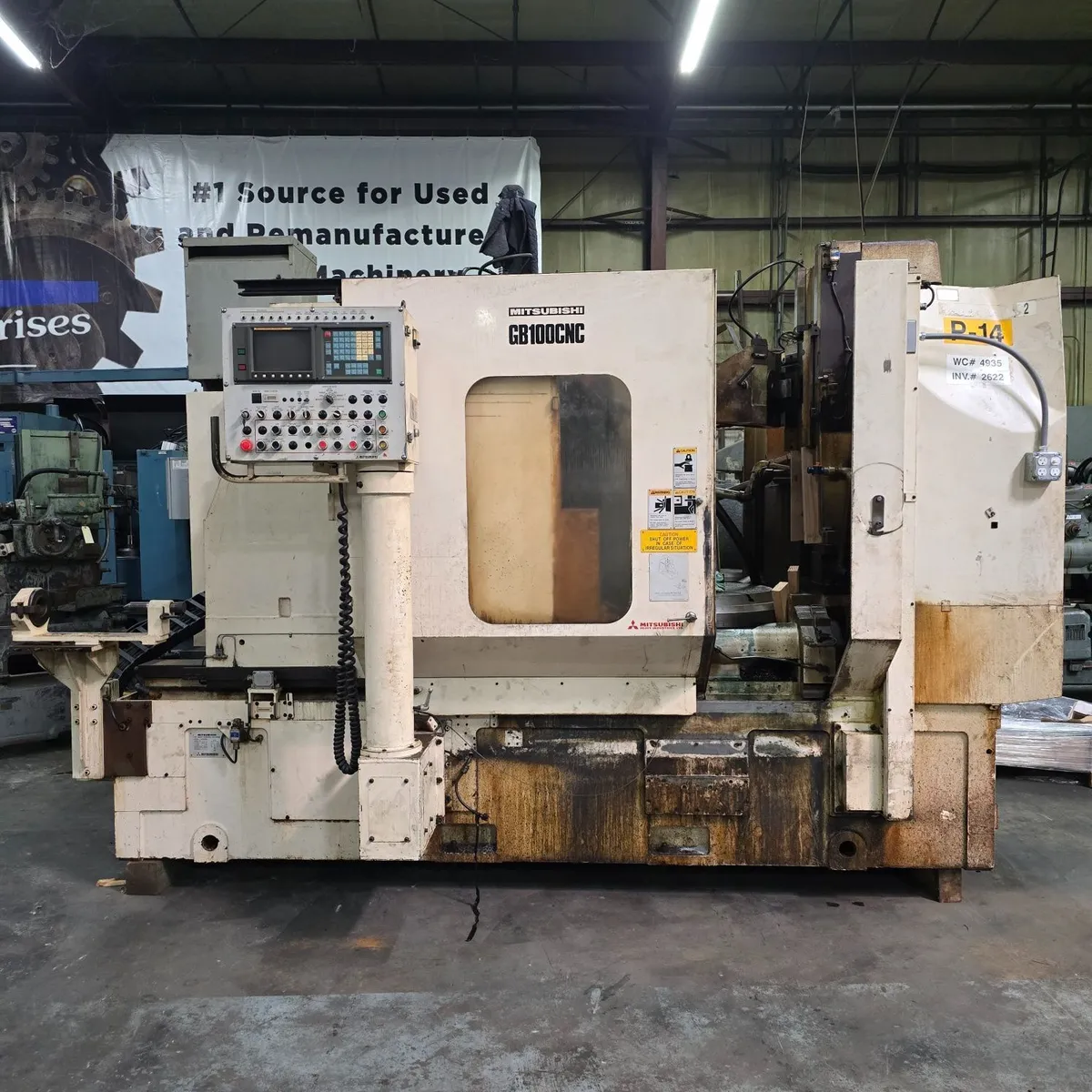

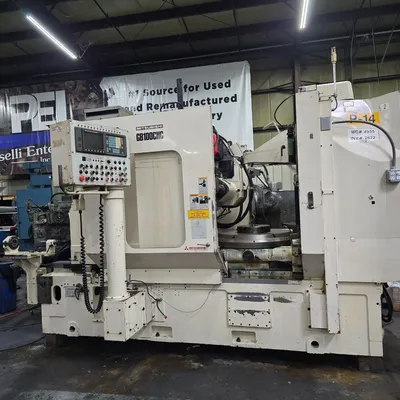

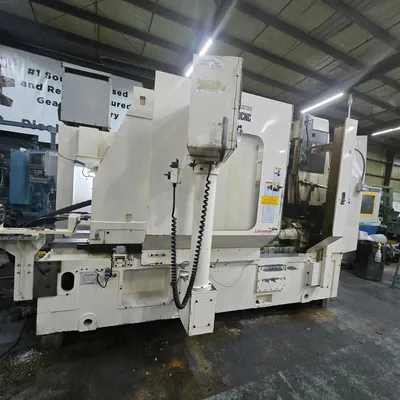

Mitsubishi model GB100 6 axis CNC gear hobber 1000mm diam. cap, 1.8 DP., Fanuc controls , tailstock , new 1995

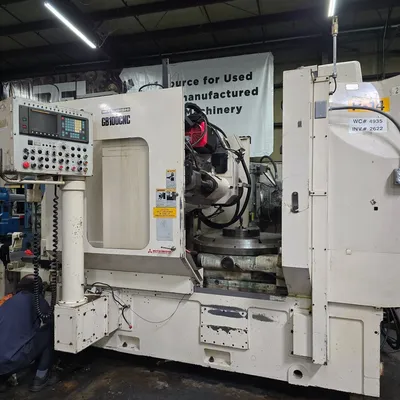

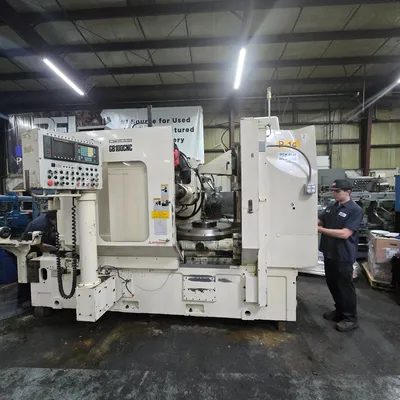

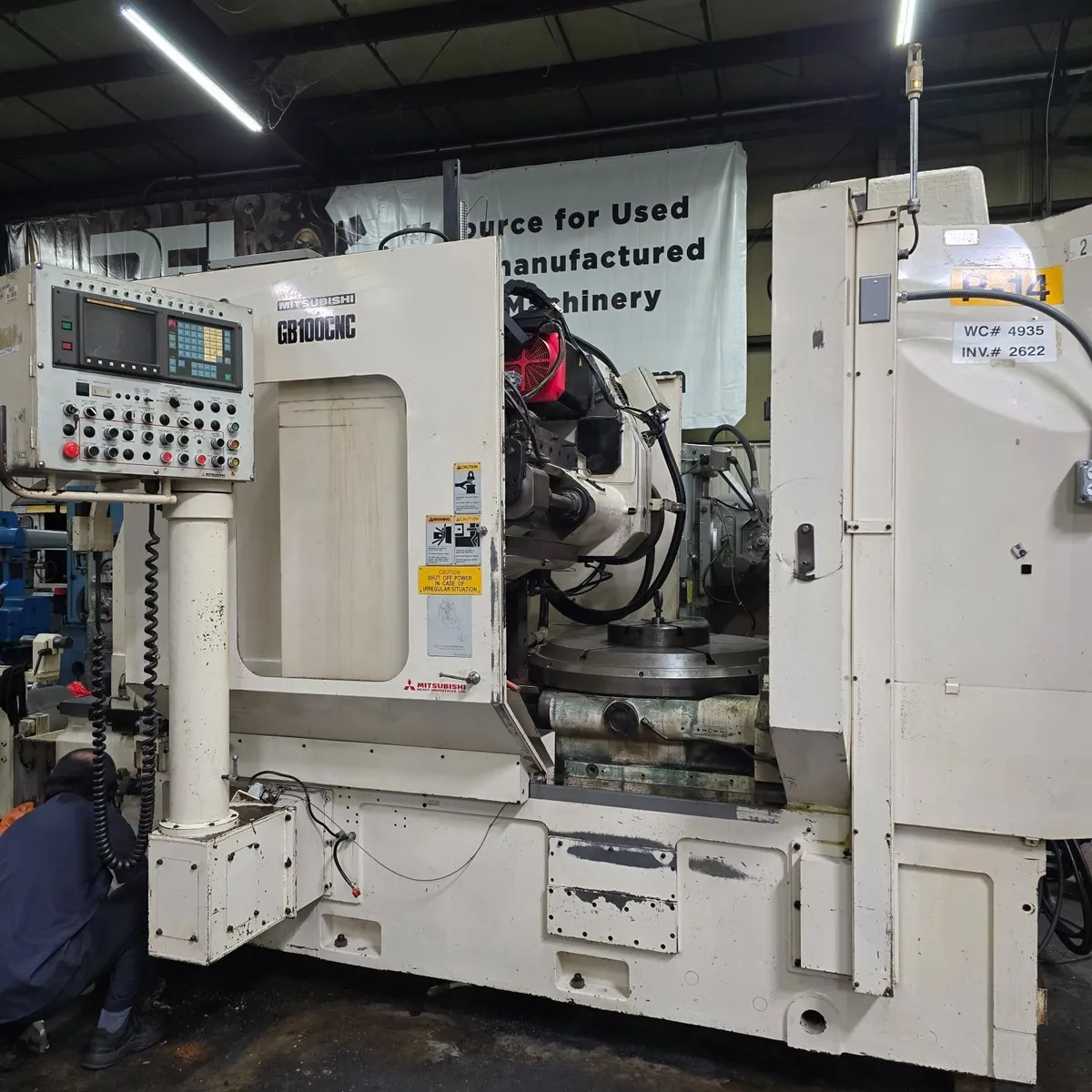

Mitsubishi 6-Axis cnc Gear hobber
Model GB100
s/n 91010C5

This 6 axis cnc gear hobber has just arrived in our shop
the machine will be gone through tested under power and
necessary repairs will be made . contact us today to set
up an under power inspection

Machine specifications
Max hobbing diameter 39.37" (1000mm)
Max D.P. (module) 1.81 (14)
Table diameter 31" (780mm)
Table bore diameter (TBD)
axial travel
(between work table surface 19.7" (7.9 to 27.5)
and hob spindle center) 500mm (200 to 700mm)
Radial travel
(between hob spindle center 22.6" (1.96 to 24.6)
and work table center) 575mm (50 to 625)
Max hob diameter x length 8.3" x 9.4"
hob spindle speeds 30 to 225 rpm
Max table speed 20 Rpm
number of teeth range 6 to 1,000
Max hob swivel +/- 45 deg
Dist from table center to hob center 7.9" to 27.5"
Dist from table to hob spindle center 17.7" to 35.4"
Main Drive motor 20 HP
Machine area 174" x 123"
Machine weight 33,000 lbs

Machine is equipped with the following:

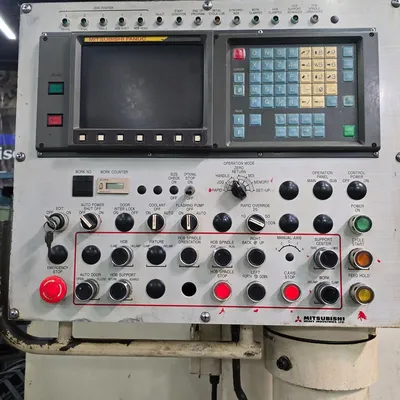

Fanuc cnc 6 axis controls
chip conveyor
tailstock assembly (swing away)
hob setting device
hob arbors
full guarding
books and manuals

Machine can be inspected in our Statesville NC facility
Machine to be put under power in short notice. contact
Us at www.Pisellient.com and request formal quote on-line
or email rich Piselli at Rich@Pisellient.com

thank you
Richard piselli
