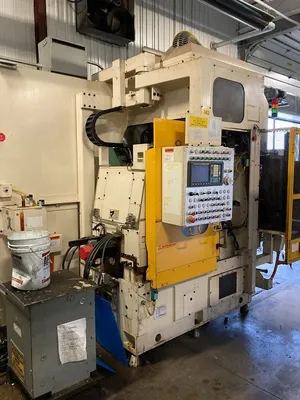

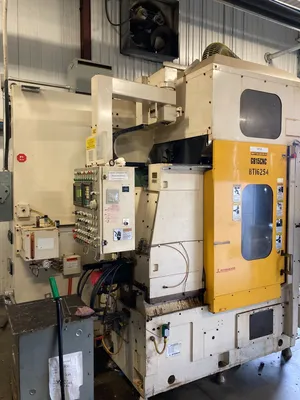

Mitsubishi, Model: GB15, CNC Gear Hobber, 8" Diam cap (200mm) w/ Fanuc Controls, Chip conveyor, SEE VIDEO ON LINE!!

Mitsubishi cnc Gear Hobber
Model GB-15 CNC
Mfg s/n 15526C3
New 1994

this machine can be inspected in plant under power
the machine has been well maintained in an aerospace shop

Machine catalog specifications
Max. workpiece diameter 8"/ 200mm
Min. workpiece diameter 0"
Diametral pitch 6.35 DP
Axial movement range 5.91"-15.7"
Maximum hob diameter 4.72"
Maximum hob length 7.08"
Maximum hob shift length 5.11"
Hob rotary speed range 150-1000 RPM
Maximum table rotary speed 150 RPM
Machine weight 13,000 lbs

MACHINES EQUIPPED WITH THE FOLLOWING:
Fanuc OM CNC Control
1 Hob Arbor
Magnetic Chip Conveyor

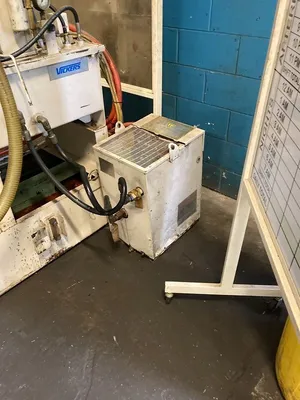

Chiller
Coolant Tank
Books and manuals
Back up done of software

This machine can be inspected in customers plant under power
the machine has been well maintained in an aerospace shop and
its condition looks to be excellent. Contact us on-line at
www.pisellient.com to receive a formal quote, Video & Pricing.
You can also contact us to set up an under power inspection
for a short time at Rich@Pisellient.com

thank you
Rich Piselli
704 609-0766
