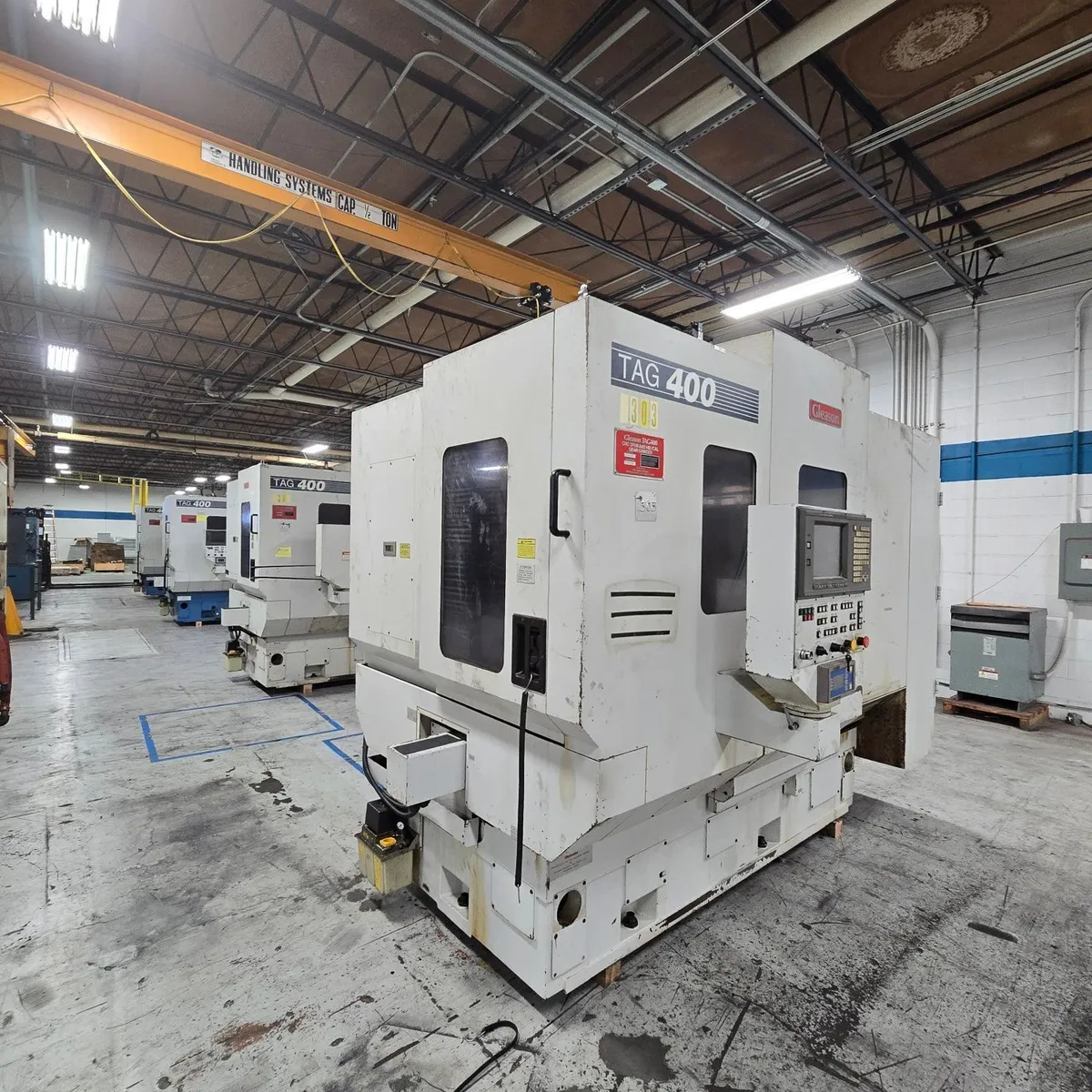

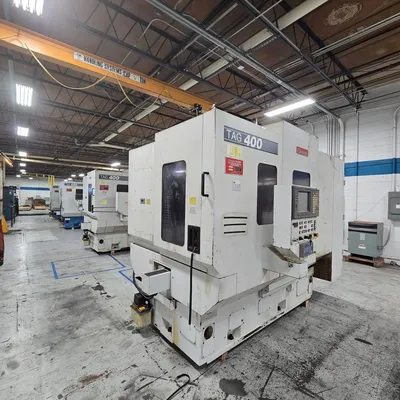

gleason TAG 400 cnc gear grinders , 400 MM diameter capacity generating style machines w/ cnc dressers as new as 2001

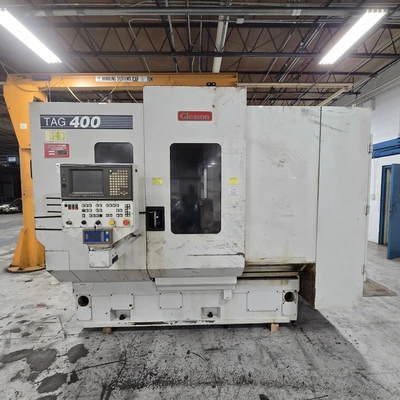

Gleason CNC Gear Grinding Machine Generating style
Model TAG 400
s/n 1066, 1045 & 1044
New 2001 & 1998

These Gleason model Tag 400 utilizes the Generating style grinding
feature. the Machine dresses the wheel automatically during cycles.
this machine can be used for small or large run production jobs.
contact us today to inspect in our warehouse in North Carolina !!

machine specifications are as follows:

Max Diameter Gear 15.7"
Max pitch 3.0 DP

- 15.75" Max Tip Diameter
- .400" Min Root Diameter
- 8.00" Max Face Width
- 50.0-3.0 Diametral Pitch Range
- 0.5-8.0 Modular Range
- 6-600 Number of Teeth
- 8"-31.5" Distance Between Centers
- +/- 45 Degrees Max
- 14.5-30 Degree Pressure Angle
- Lead Relieving
- Lead Crowning
- Special Relieving
- Special Crowning
- Conical Taper Gear
- Concave Crowning
- 150 Lb. Max Workpiece Weight
- 19,550 Lbs Weight of Machine

Machine is equipped with the following

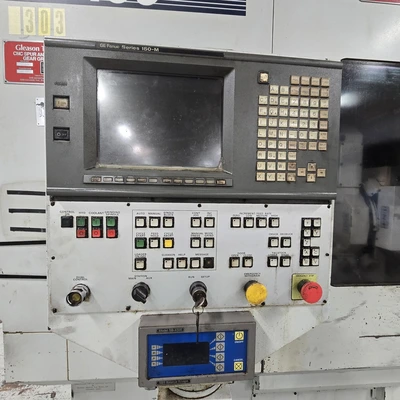

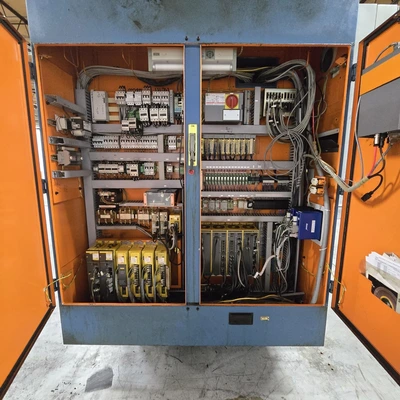

GE-Fanuc 15 M control
Pendant controller
Full enclosure

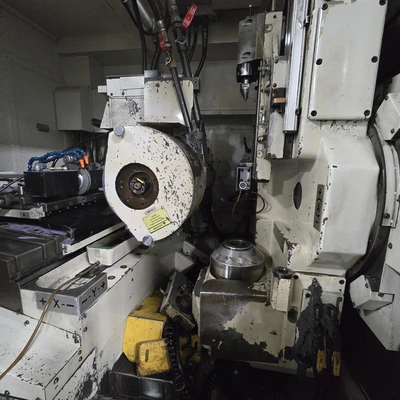

CNC Dressing unit

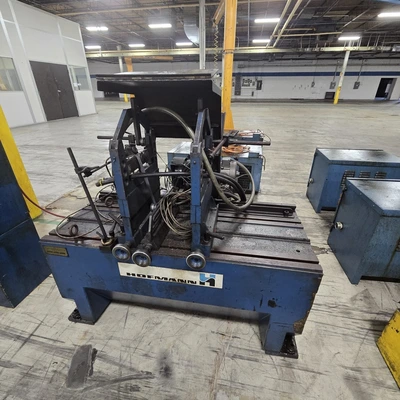

SBS wheel balancing

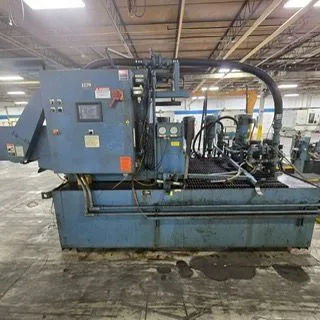

Oberlin model OPF-7 filtration unit s/n 354-SD
full tooling assortment & extra grinding wheels

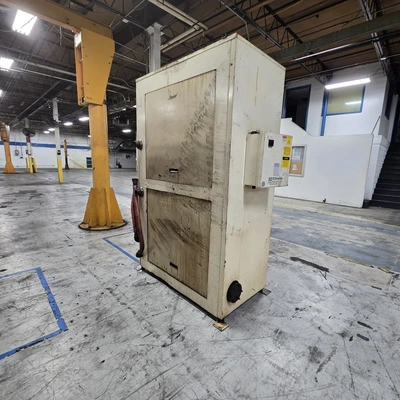

chiller and mist collection
books and manuals

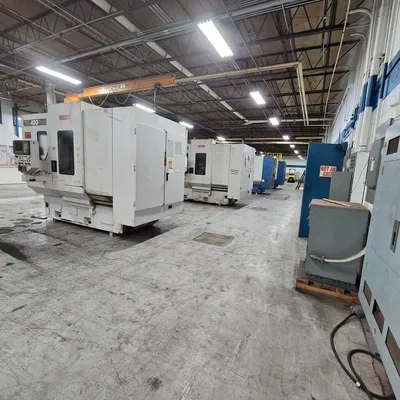

Machines can be inspected with proper notice in our Statesville NC
warehouse . the machines have been removed from power so they can not be
seen operational. contact us today to visit and inspect accordingly. contact
rich Piselli @ rich@pisellient.com to receive a formal quote and pricing
or visit www.piselliEnt.com to see our other machines we are offering
