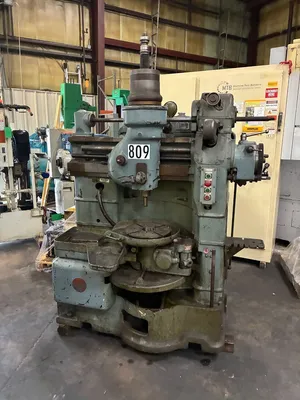

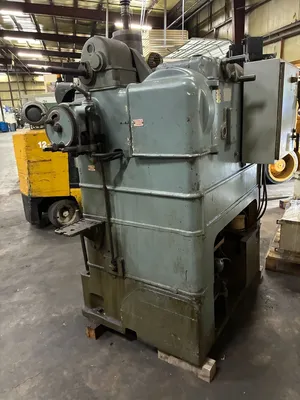

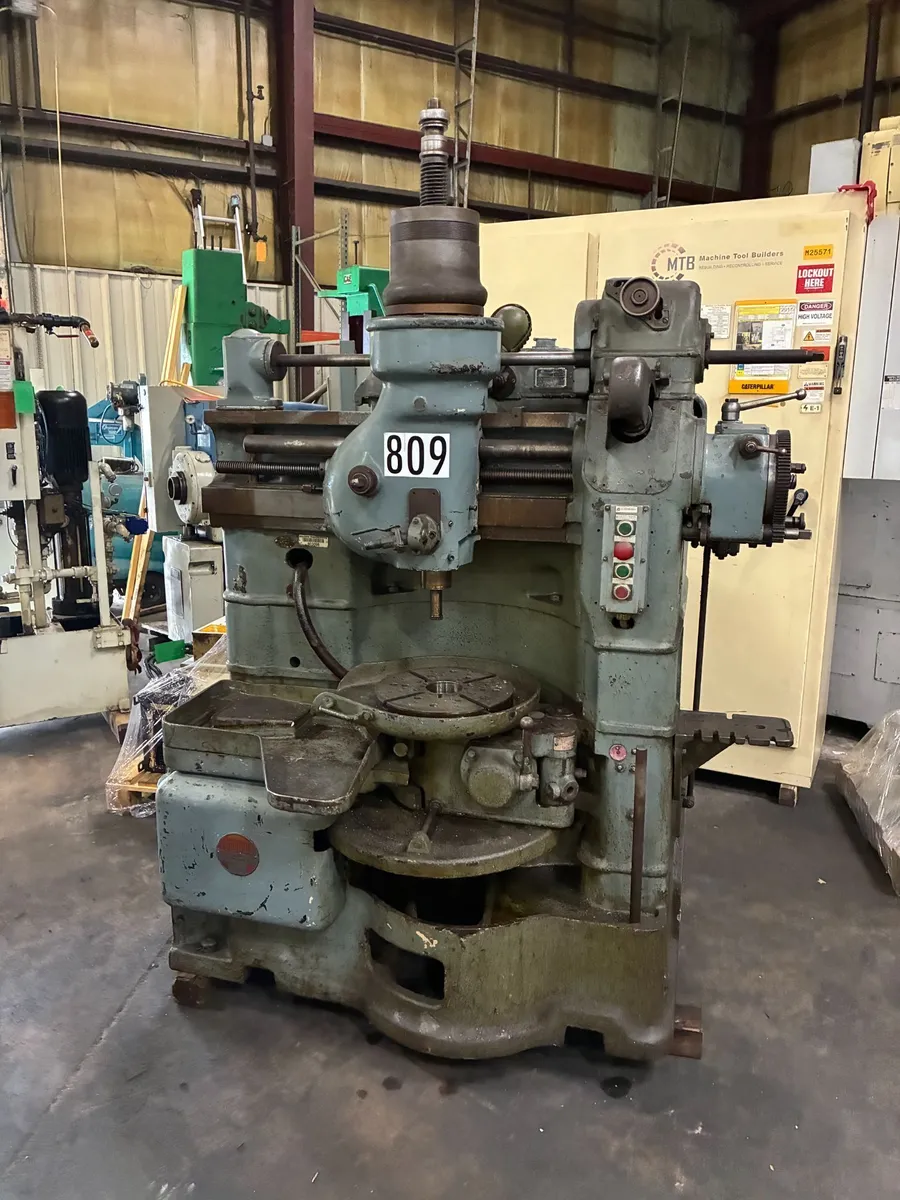

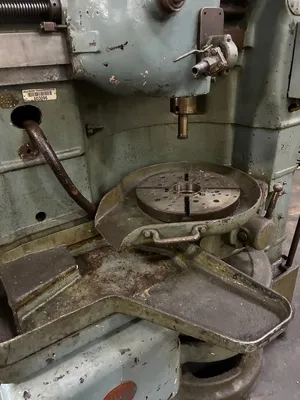

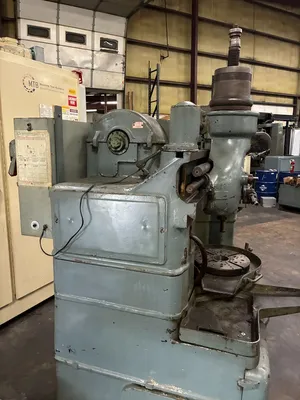

Fellows model 65A3 vertical gear shaper , Includes Guideless Helical Attachment, 18" diameter gear , 3" stroke , 8" riser height, excellent condition Model #65A3

Fellows Vertical gear shaper

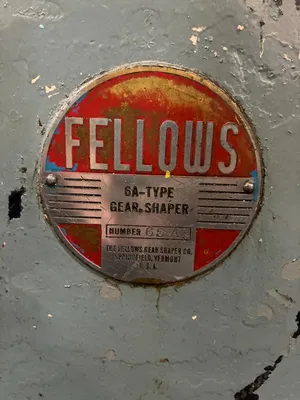

Model 65A3
s/n 17936
w/ adjustable helical head
Excellent condition

Machine will be gone through and properly adjusted for optimum
performance. Includes Guideless Helical attachment. Machine backlash brought back
to original OEM specs., while all items repaired as needed

Machine specifications are as follows:

* Max pitch diameter (External) 18"
* Max pitch diameter (Internal) 18"
* Max face width, external & internal 3"
* Max diametrical pitch spur 4 DP
* Max diametrical pitch helical 6 DP
* Bore through work spindle 5-7/8"
* Max Clearance height (13")
* Cutter spindle diameter 2.875"
* Max helix angle with proper guide 45+/- degrees
* Stroking speeds 50-300 SPM
* Dimensions (L x H x W) 63" x 48" x 80"tall
* Machine net weight, approx 6,500 lbs

Machine Equipped With:

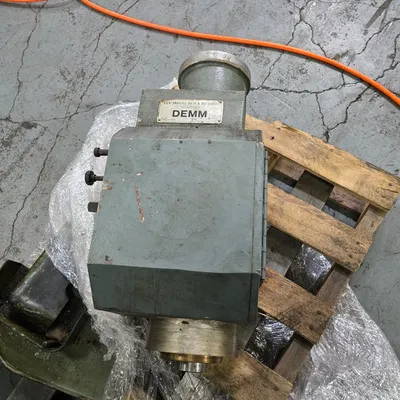

* Demm special guideless head (+/- 45 degrees)
* 3" Stroke
* 5-7/8"" Bore in table (TBD)
* 8" Riser
* Hollow spindle
* Standard Straight Spur Guide
* t-slotted table
* Misc change gears

Machine can be inspected under power with proper notice in our
Statesville NC Plant. contact us to set up an inspection today
or visit our website to view other machines in stock at
WWW.PiselliEnt.com So much to choose from !!
