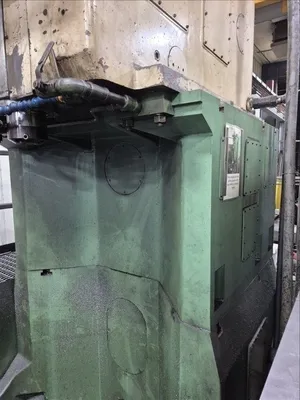

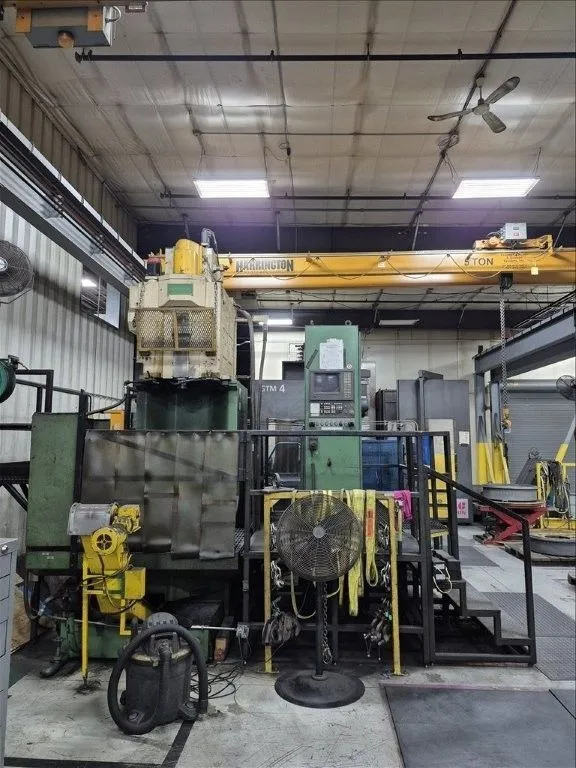

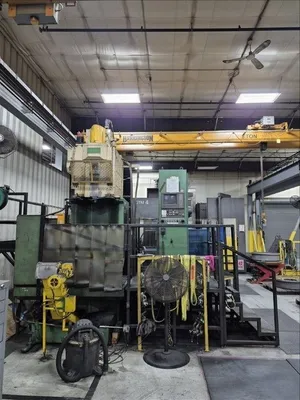

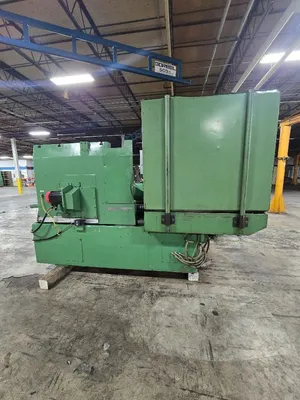

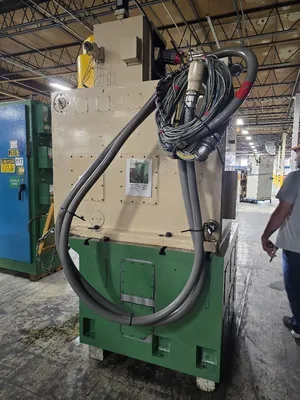

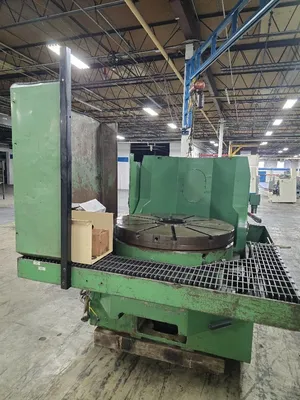

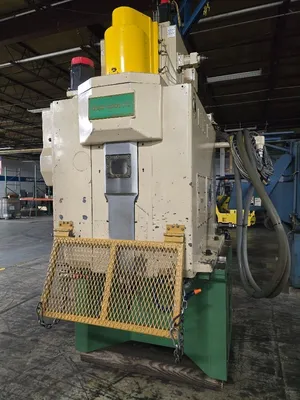

FELLOWS model 50-12 Hydrostroke CNC retrofitted & Remanufactured Gear shaper, High Riser, w/ Fanuc controls

fellows 6 axis Hydrostroke CNC Gear shaper
w/ special 30" additionl riser assembly

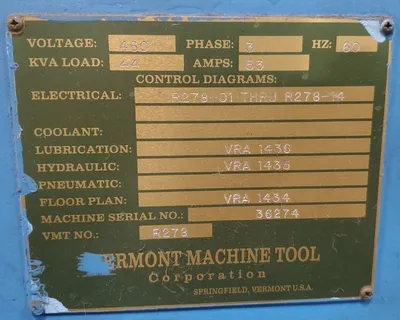

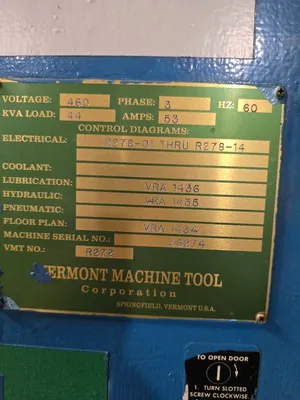

s/n 36274
remanufactured and retrofitted with Fanuc model 15M

machine specs are as follows
Machine specs correspond to the following catalog info:
Machine Specifications are as follows:
Max External Gear 50"
Min External Gear 0"
Max Internal Gear 50"
Min Internal Gear 11"
Max Pitch gear 2 DP
Max Stroke length 13"
Max Face capacity 12"
Max clearance Height 55" (TBD)
Spindle Diameter 5.5"
Center Distance Max/Min 30.9" / 3.55"

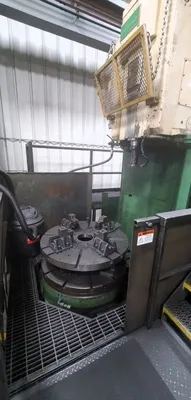

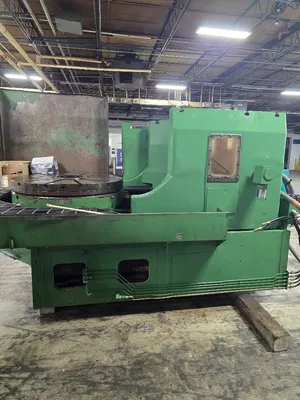

Table Diameter 44"
table Bore Diameter 11.2"
floor space 12' wide x 18' Deep
Machine Height TBD
Machine weight approx 47,000 lbs
Machine floor space 12' wide x 18' long

Machine is equipped with the following:

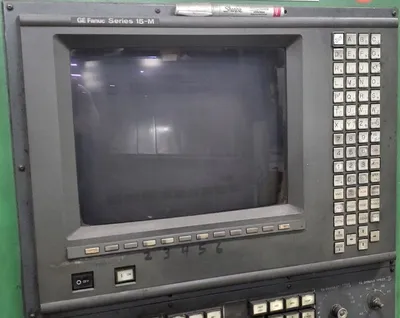

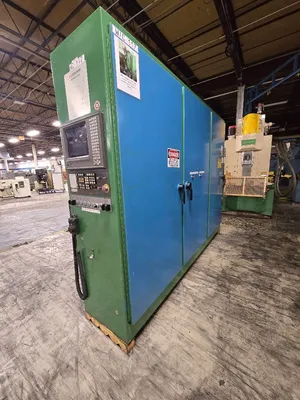

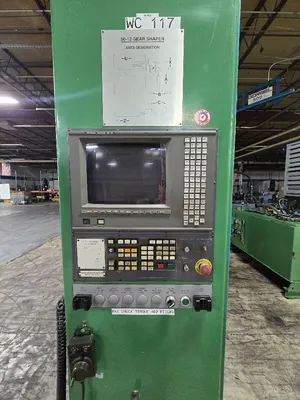

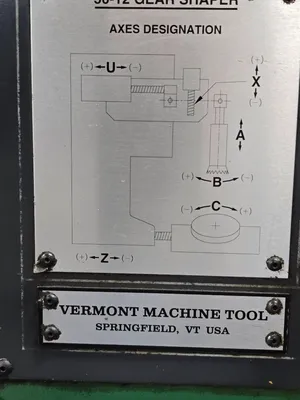

GE Fanuc 15M 6-Axis cnc controller

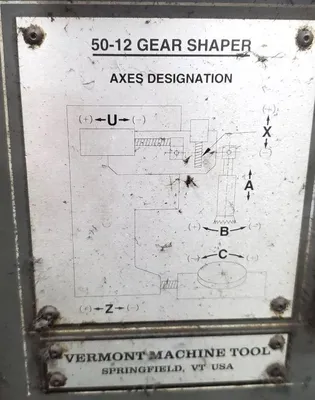

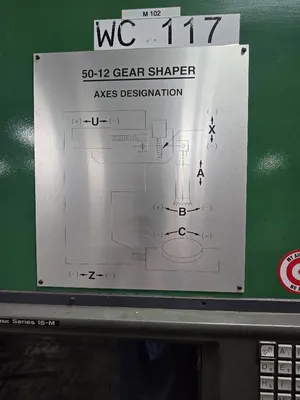

Stroke length & Stroke Position are programmable axis

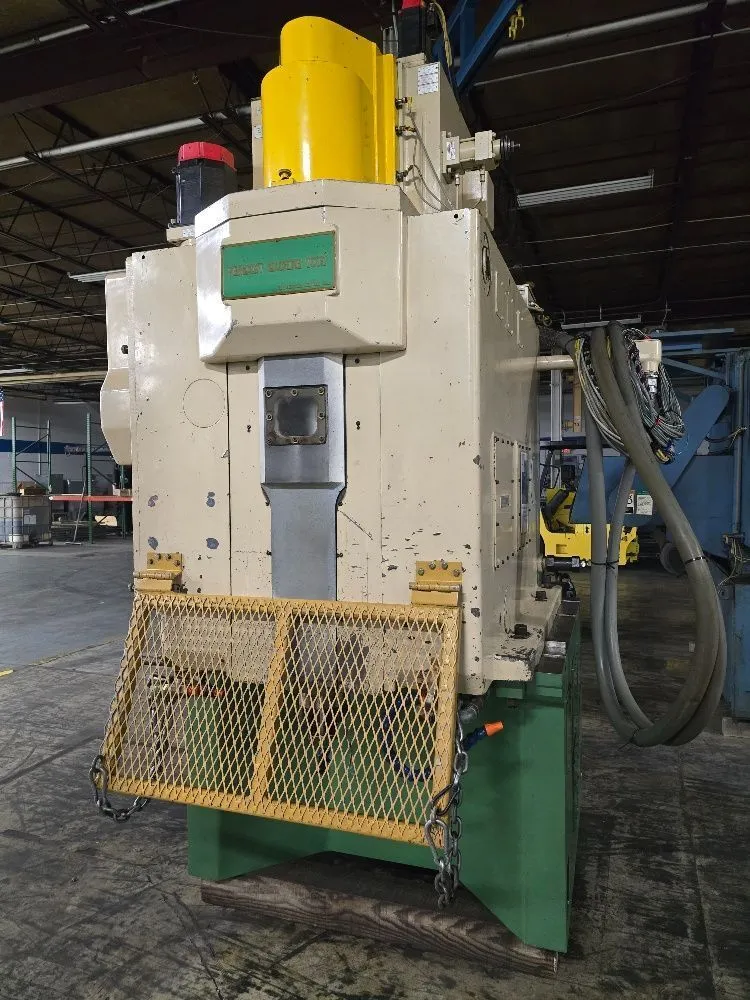

700 mm Riser height extension option
Cutter adaptor
Chip conveyor
coolant tank

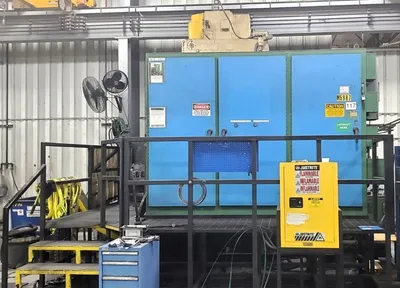

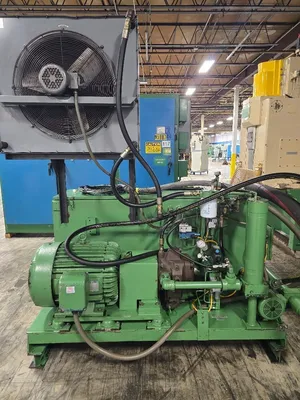

hydraulic tank w/ heat exchanger may require Ext chiller sys.
Misc tooling
Books, Manuals & Electrical Diagrams

This machine can be inspected in customers shop for a short time only call to set up an under power inspection.
Note: machine has been recently removed from Power so it cant be inspected
under power until Machine will be moved to our warehouse in NC.
contact Rich Piselli for more information or to set up inspection !!!

thank you
Richard Piselli
rich@Pisellient.com
(704) 609-0766
