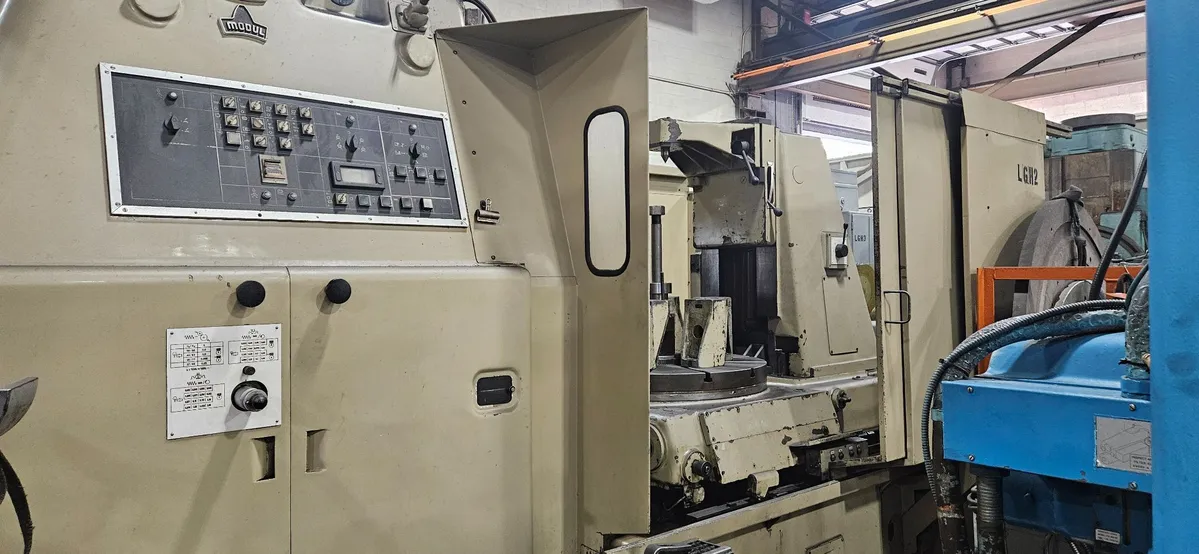

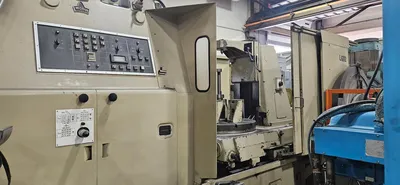

Modul model ZFWZ 1253 Gear hobbing machine , heavy duty , 48" diameter 1.5 DP , excellent and well tooled

Modul heavy duty vertical gear hobbers
Model # ZFWZ 1250/3
s/n's 10008 & 10009
age as new as 1979/1980

These Modul machines are extremely rigid and heavy duty
they are very well equipped and a very good job shop
Machine . well tooled and two machines to choose from at
this time prior to removal

Machine specs :

WITH: CHANGE GEARS, HOB ARBORS & WORK ARBOR

TECHNICAL DATA:
• Max. diameter cutting length: 1,250 mm
• Cutting width: 600 mm
• Max. module : 16
• Min. module : 2
• Maximum size of the hob: 240 x 280 mm
• Table diameter: 1,020 mm
• Speeds: 28 – 200 rpm
• Axial feed rates: 0.28 – 8 mm/min
• Radial feed rates: 0.1 – 2 mm/min
• Tangential feeds: 0.16 – 4 mm/min
• Stand tilt – left/right: +/- 45
• Main motor power: 5 / 19.5 kW
• Power of the rapids motor: 12,5 kW
• Max. diameter of the part without tailstock: 1,250 mm
• Max. diameter of the part with tailstock: 800 mm
• Weight of the machine : 16,2 T
• Machine dimensions approx. 4.5 x 2.1 x h 3.3 m

Machines are equipped with the following

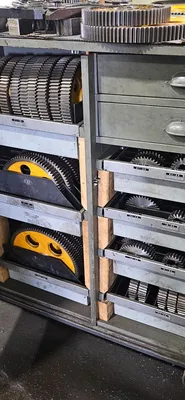

full set of gears (approx)
tailstock
work arbors
hob arbors
machine guarding
Manuals & electrical

machines can be inspected for a short time only under power
give us a call to set up a quick inspection or video can
be taken and sent via whats app . visit our website for more
machines like these at www.pisellient.com

thank you
rich Piselli
Rich@PiselliEnt.com
704 609-0766
