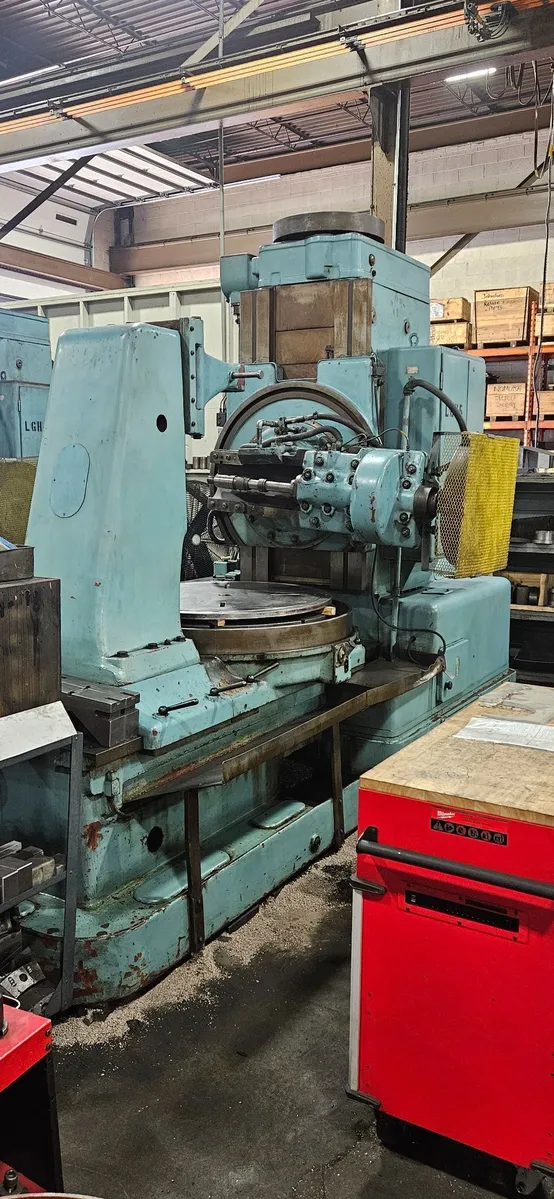

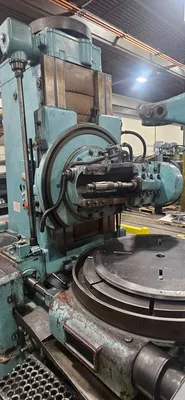

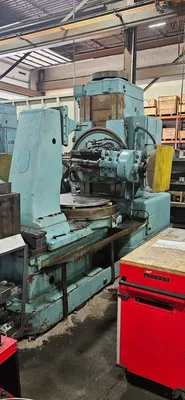

TOS model FO-16 heavy duty Gear Hobber, , good condition , 62" diam., 1.25 Dp in plant under power

TOS Vertical Gear Hobbing machine
Model FO-16
s/n will advise
IN plant under power

MACHINE SPECIFICATIONS:
Max Dia. Gear...................................63.0" / 90"**
Max Diametral Pitch.............................1.25
Max. Face Capacity, Straight....................22"
Number of Teeth..................................12-448
Diameter of Work Table............................54"
Diameter of Bore in Work Table.....................7.25"
Depth of Bore in Work Table........................26"
Max. Distance of Hob to Work Center................45"
Min. Distance of Hob to Work Center................4"
Max. Distance of Hob Axis to Work Table............41"
Min. Distance of Hob Axis to Work Table............16"
Vertical Travel of Hob.............................25"
Max. Diameter of Hob................................10"
Max. Length of Hob..................................11"
Hob Speeds (8 Steps)................................16-80 RPM
Vertical Feeds (36 Steps) inches/table rev........ .01-.25"
Horizontal Feeds of work table (36 steps)
   in./table rev.................................. .002-.06"
Tangential Feeds (36 Steps) in./table rev...........005-.16"
Main Motor..........................................16 HP
Total Power.........................................37 HP
Floor Space (approx.)...............................170" x 80"
Machine Weight (approx.)............................44,000 lbs

**Upon Measurement machine looks to capable of almost
90" diameter capacity with tailstock removed (TBD)

MACHINE EQUIPPED WITH:
Single Indexing (TBD)
Universal hobbing/Milling Head
Misc Change Gears
Arbor
Tailstock

Machine looks to be in good mechanical condition. The
machine can be inspected under power in customers plant
with proper notice!!
Call for additional questions and photos!!
visit our website at WWW.PiselliEnt.com and request
formal quote and pricing on line . contact Rich Piselli
at Rich@PiselliEnt.com

thank you
Richard Piselli
