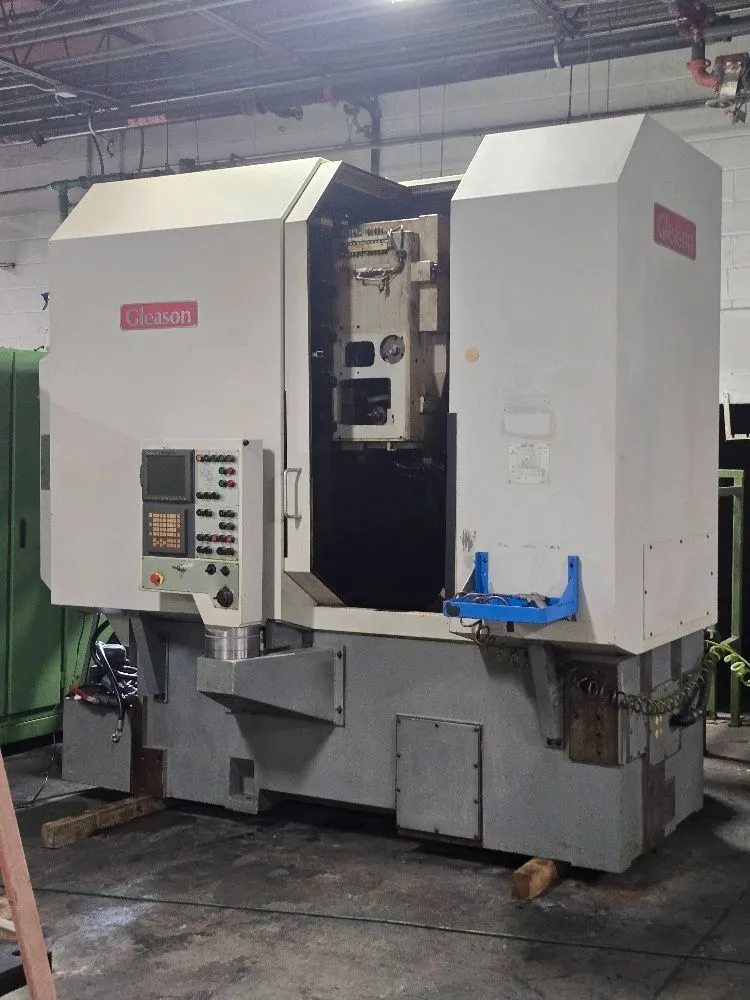

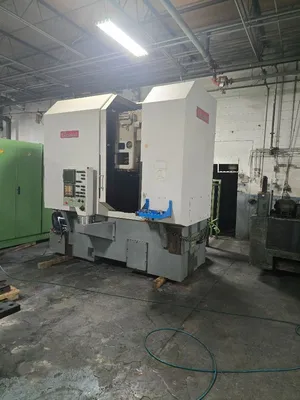

Gleason Model GP200S cnc Gear shaper w/ tilting column option , new 2000. inquire (2 avail)

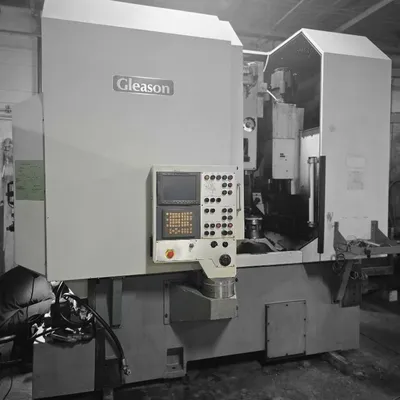

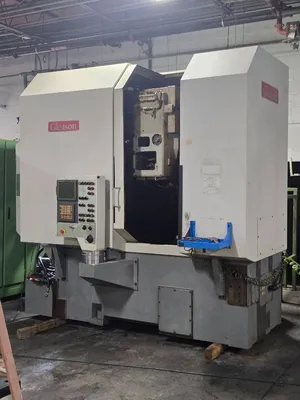

Gleason CNC Vertical Gear Shaper
Model GP200S
s/n's 940901 & will advise
New 2000
with special tilting column option !!
equipped with Special CNC Tilting column Option

This CNC Gear Shaping Machine is equipped with all the latest features. All axis
are CNC controlled and the Higher feeds and speeds allow the manufacturer the
opportunity to use carbide and other coated materials for quicker cycle times.
automatic thermal compensation, quick clamping equipment, stroke length adjustment,
auto stroke adjustment are just some of the many features of this machine.

Machine general specifications are as follows:
Nominal Work Piece Diameter 7.9" / 200 mm
Maximum Diametral Pitch/ Module 5 NDP/ 5 Module
Maximum Stroke Length (optional) 2.17" (4.33") / 55mm (110mm)
Maximum Face Width (optional) 2.00" (4.00") / 50mm (99mm)
Cutter Spindle Diam. (optional) 3.35" (3.74") / 85mm (95mm)
Cutter Spindle Stroke speed (optional) 180-1800 SPM (130-1300 SPM)

Maximum Helix angle w/ cutter diam 125mm +/- 45 degrees
Center distance , cutter spindle to work spindle -1.97/ 7.9" -50mm/+200mm
Axial Slide position Range 5.9" 150mm
Column inclination Range (optional) 0-10 degrees
Column Lateral offset +/- 0.98" +/-25mm
Cutter Locating taper HSK-B63
Total Power Rating 44 kVA
Machine Weight Approx 19,800 lbs 9,000 kg

Machine is equipped with the following Options
Tilting Column option up to 10 degrees

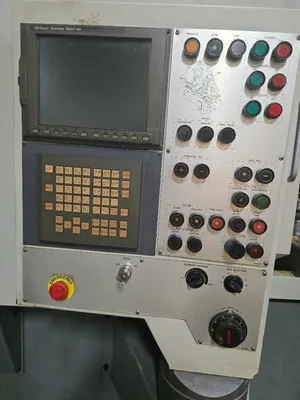

GE Fanuc 160i-M CNC Control
Operator Pendant controller
stroke length positioning
slot cutting (single index)
multi cut work cycles
Spiral radial infeed for quicker cutting cycles
Linear Radial infeed
Digressive Radial infeed

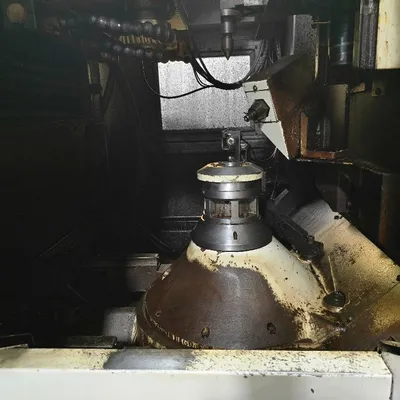

Cutter adaptor
Hydraulic work clamping
work fixture on Machine

Contact us today to learn more about this excellent gear shaping machine
and learn more about its exceptional features. we would be happy to send you
a copy of the operators manual to study and learn more about this machine and
its true capabilities. Visit this and other CNC gear shaping machines available
at WWW.PiselliEnt.com as We look forward to discussing this machine and others!
