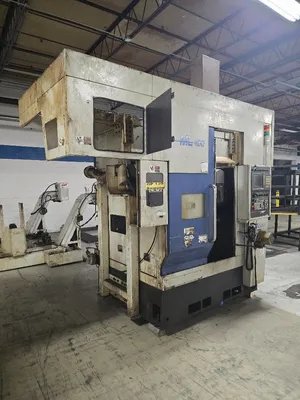

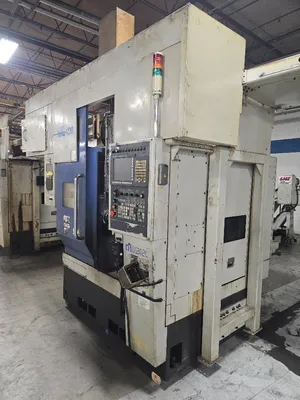

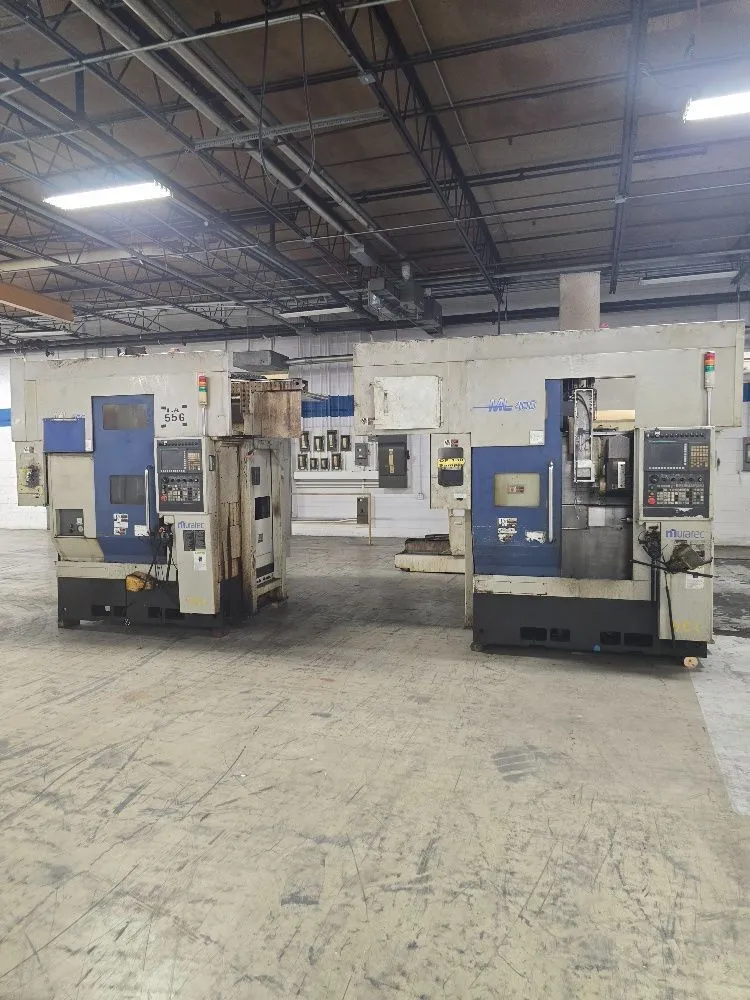

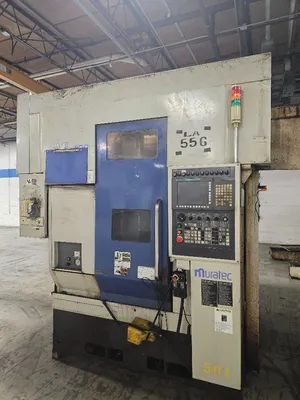

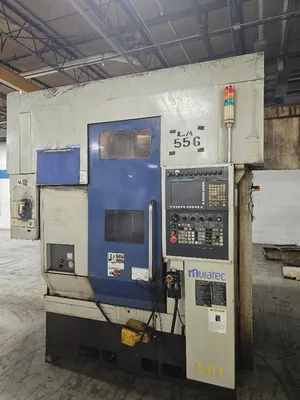

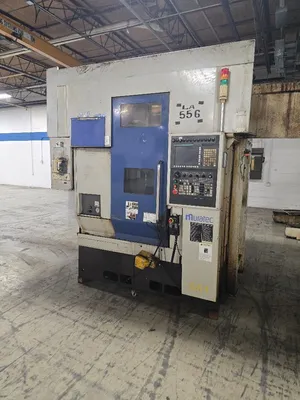

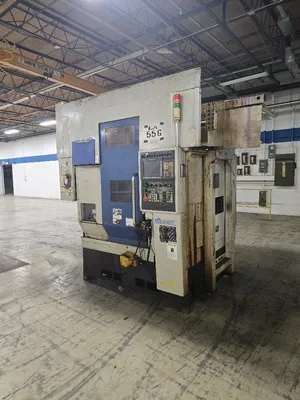

Muratec model ML 400 cnc single spindle , single turret w/ tailstock for hard turning shafts (2) available new 2010

Muratec CNC turning centers for shafts
Model ML 400
s/n 5002, 5004
New 2010.11 delivered new 2011
good condition

These Hi-Speed CNC Hard Turning machines from Murata have been specially equipped
programmable tailstocks and gantry loaders for the production of shafts!
shafts can be loaded manually if production doesn't warrant the use of the Gantry
Parts of 200 mm diameter x 400 mm long can be produced and machined quickly on
this machine. It is also an excellent machine for the production of
worms & threads or similar parts and/ or components and highly used for Hard
turning parts due to their high accuracy and heavy duty design!!

machine catalog specifications:
Maximum swing 340 mm
Chuck Size 6/8 inches 165mm/ 205mm
Spindle AC motor 15 kw (option)
Maximum cutting diameter :
- with loader 200mm
- without loader 200mm
Maximum part length:
- with loader 390mm
- without loader 400mm
number of turret positions 6
x axis stroke 130mm
Z axis stroke 430mm
Quill axis stroke 300mm
rapid traverse x-axis 20 m/min
rapid traverse z-axis 32 m/min
rapid traverse Quill axis 20 m/min
Maximum spindle speed 45-4500 rpm
standard byte tools 20mm
Max diameter boring bars 32mm
Max weight of part in loader 10 kg
Machine weight with loader tools 4500 kg
Machine floor space w/gantry 3280 mm width x 1650 depth
Machine height w/ gantry 3300 mm

Machines are equipped with the following:

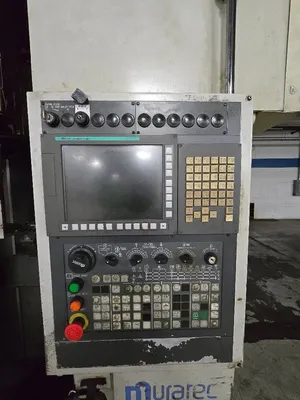

Fanuc controls
Heavy duty optional 15 kw spindle motor

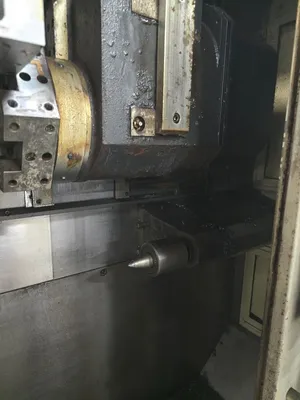

tailstock option (MT4 Rolling center)
single station single turret
gantry loading
chip conveyors w/ coolant tank
Books and manuals

Note : customer tooling is not included with these machines and
chucks will need to be purchased as required for your specific
parts and tooling needs. 2 centers included

Machines can be inspected in our NC plant with proper notice shortly.
contact us today to inquire about more information and specifications
you may require. visit www.PiselliEnt.com to view this machine and
others we have in stock. or email Rich@PiselliEnt.com for additional
questions!!
