Gleason Genisis 260GX CNC twin spindle generating Gear grinder , great condition New 2017 rebuilt w/ new spindle & electrics 2025

Gleason Genisis twin spindle Generating gear Grinder
Model 260GX
New 2017
excellent condition / under power
charts & video Available
**Rebuilt BY Gleason in 2025 w/ New spindle amd electrical panel & software!!!**

Gleason Genisis 260GX CNC twin spindle generating Gear grinder
grinding modes

Twist-controlled grinding
polish-grinding
fine-grinding with two-zone grinding wheel
VRM (Variable Rate Method) surface texture control

The defining feature of the 260GX is Gleason's dual-spindle
concept: two independent workpiece spindles alternate between
grinding and loading positions. While one spindle is actively
grinding, the other handles part loading, unloading, and
cleaning in parallel. This overlapping cycle delivers chip-to
-chip times as low as 5 seconds, maximizing spindle utilization
and throughput. For automotive and commercial vehicle gear
production running millions of parts per year.
The 260GX supports both dressable and CBN (cubic boron nitride)
threaded grinding worms, with a two-zone wheel concept that
integrates roughing and finishing sections on a single wheel.
This allows the machine to rough and polish-grind gears in one
pass, achieving surface quality that meets or exceeds AGMA 12
quality rating (equivalent to DIN 4-5) without requiring a
separate honing or lapping operation. Gleason's advanced
dressing technology enables complex profile modifications
including crowning, tip relief, and root relief directly during
the grinding cycle.

Machine specification:
Max Part grinding Diameter 260 mm
Max Mod 4 mm
Max shaft length 500 mm

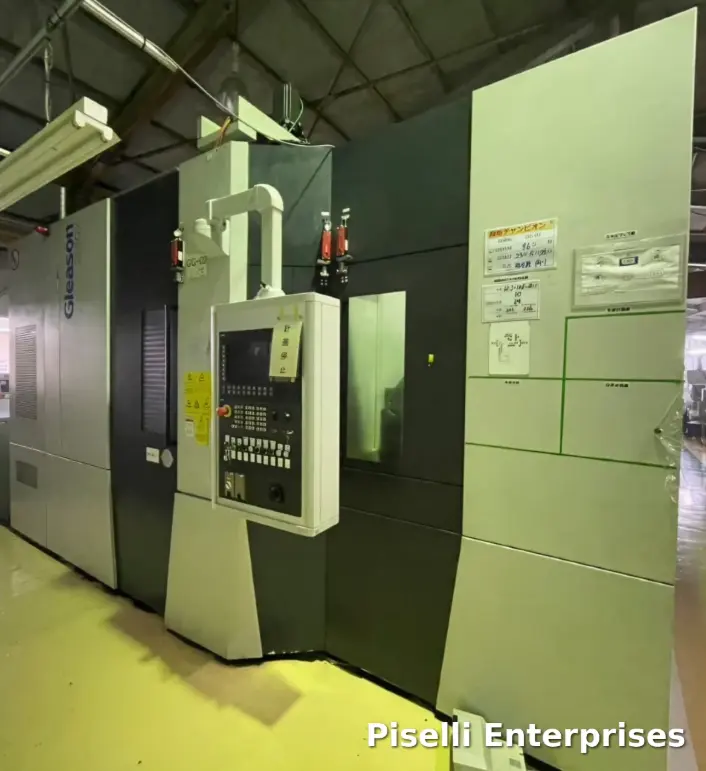

Machine is equipped as photographed with all systems
twin spindle configuration
auto loading
Shuttle style part conveyor
filtration system
chilling system
misc tooling
books and manuals
full documentation w/ software back up

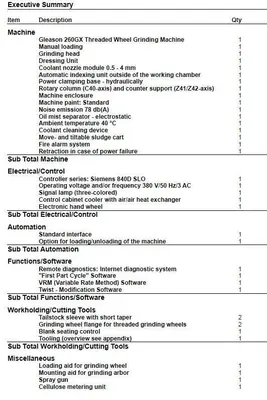

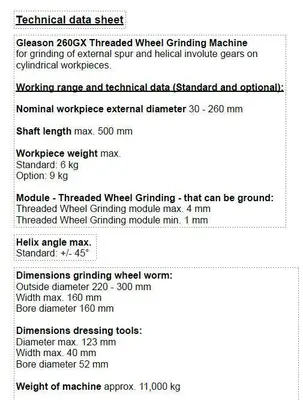

SEE Attached MFG specifications for a more detailed description !!

contact us to come inspect machine under power or request
under power video via whats app . we understand all it takes
to ship machines and we are able to provide you a delivered
price fob nearest ocean port of your choice . visit our site
at www.piselliEnt.com to request formal quote on - line !!

thank you
Rich & Nick Piselli
