HOFLER / Klingelnberg Speed Viper S180. w/ Klingelnberg P26 integrated grinding and inspection cell Comes complete koenig Automation New 2019

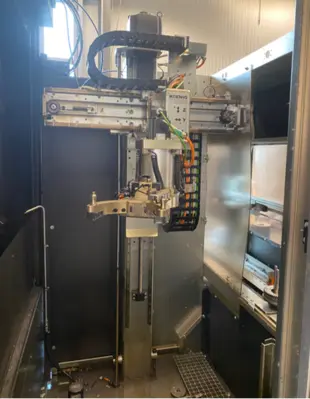

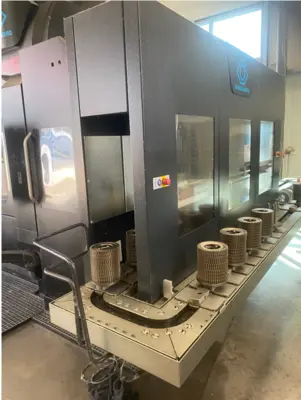

HOFLER/ Klingelnberg fully integrated Cell

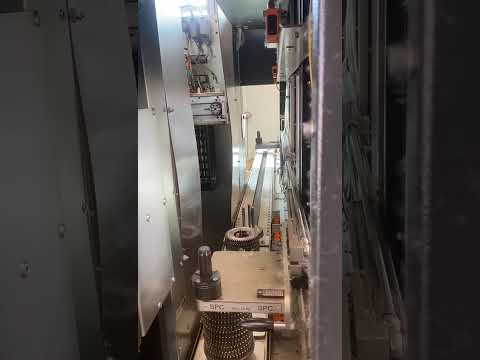

Klingelnberg SPEED VIPER S180
year of manufacturing 2019
w/ Klingelnberg Model P26 Fully integrated CNC Gear inspection

Technical Parameters:
working range:
OD max. 180 mm
Df min. 0 mm
z-axis (over table) 0 - 500 mm
w-axis, (tailstock) max. 600 mm
center distance over table 295 – 895 mm

work table:
speed 0 -2300 rpm
load on table max. 35 kg
table-Ø 120 mm
table hole-ø 59 mm
table hole depth 150 mm

grinding head:
power max. 25 kW
speed 7200 rpm / vgrind100 m/s
helix +/-45°
z-axis speed max. 12 m/min
y-axis (shifting) -230.5 / +29. mm

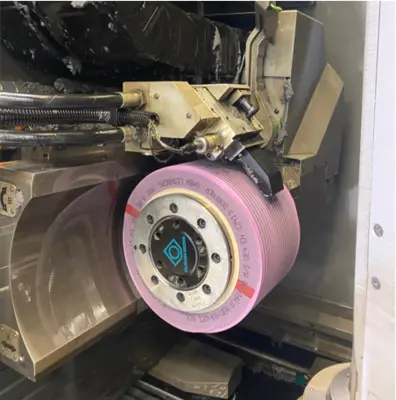

grinding wheel-Ø 210 – 320 mm
grinding wheel width 200 mm
module 0.5 – 3 mm

main electrical and dimensions:
power (installed) max. 60 kVA
voltage 400V / 50Hz. (voltage deviation max. +/-10%)
control voltage 24V
total weight 18t
required space (machine) 3.5 x 2.2 x 3.42 m

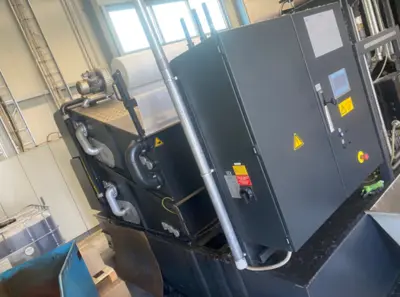

required space (filter) 3.4 x 2.2 m

Equipment:
- grinding spindle 7200 rpm (special equipment) for changeable grinding flanges

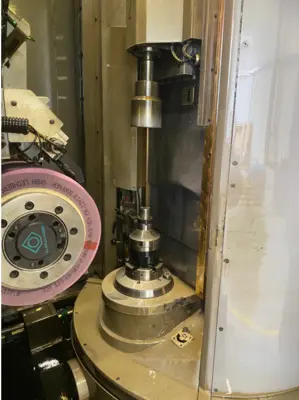

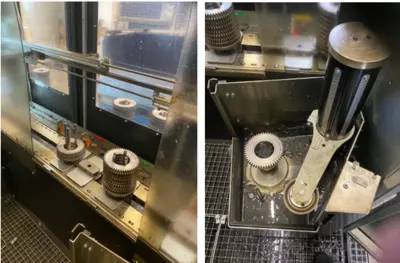

- 2 work piece spindles (max. 3000 rpm) on turret
- 2 tailstocks with center (MK DIN807) on turret

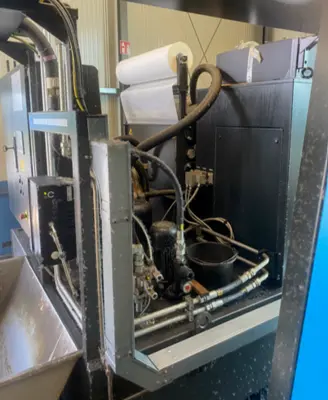

- cooling unit for water cooled spindles (grind.- work piece and dressing spindle and a-axis)
- dressing unit (located in machine bed, with cnc swivel axis (PA corrections)
- integrated hydr. and pneum. installation
- central lubrication unit
- acoustical emission balancing system for grinding spindle with autom. indexing detection (touch in grinding wheel)
- acoustical emission system for dressing spindle touch on detection
- autom. hydr. expanding clamping arbor system for grinding wheel with flange
- Siemens 840D SL, with 19” touchscreen
- HMI with Klingelnberg Gear Operator software for involute gearing
- high resolution rotary and linear encoder for all main drives
- interface to network
- signal light on machine
- emergency spindle retract by overload or power failure (prevent from tool or machine damage)
- return pump, level controlled
- leveling pads
- automatic machining room flushing
- machining room illuminated
- integrated and cooled electrical cabinet (max. 40°C)

KLINGELNBERG P26
Precision Gear Checking machine.
year of manufacturing 2020
• High system accuracy thanks to 4-axis measuring technology and software-supported accuracy optimization
• Klingelnberg PPC (Power PC) CNC control concept in a separate control cabinet
• Ergonomically designed control unit
• Measurement axis drive via contact-free and wear-free modular AC linear motors
• Fully automatic testing procedure (automatic loading available on request)
• Automatic detection of tooth gaps
• Latest version of the patented Klingelnberg 3D digital probing system with comprehensive collision protection
• 400 mm vertical measuring range
• Machine design optimized for use in production environments, featuring an inherently rigid cast bed, a consistent choice of materials, the use of high-precision Zerodur scales and temperature compensation, as well as optional vibration isolation via diaphragm air spring vibration isolators
• User-friendly, high-precision counter holder (center)
• Remote maintenance via VPN or the web possible
• Comprehensive, modular Klingelnberg measurement and analysis software available (see also options, page 7)
• Low voltage connection and power consumption 

module range (0,1) (1) 0,35 – 16 mm
max. / min. helix or angle of inclination 0° / 90°
max. test diameter of gears between centers 260 mm
max. part diameter 300 mm
smallest OD and ID 4,8 mm (1)
vertical measuring range (Z-axis) 400 mm (550 mm) (4)
horizontal measuring range (generating way X-axis) ± 75 m
max. moment of inertia 1 kgm²
max. loading weight 80 kg
center distance 50 – 600 mm (800 mm) (4)
available scales of diagrams (2) 50, 100, 200, 500, 1000, 2000
available Diagram enlargement (prof. & lead length) 0,5-1-2-4-5-10-20 x

many of these items are with the machines but need to be confirmed
the machines can be inspected under power with proper notice.
Machines will be sold quickly , so we recommend prompt inspection
and payment . our prices are non -negotiable for individual purchase
