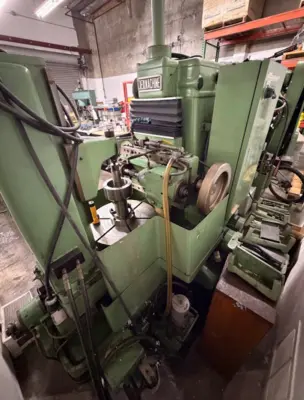

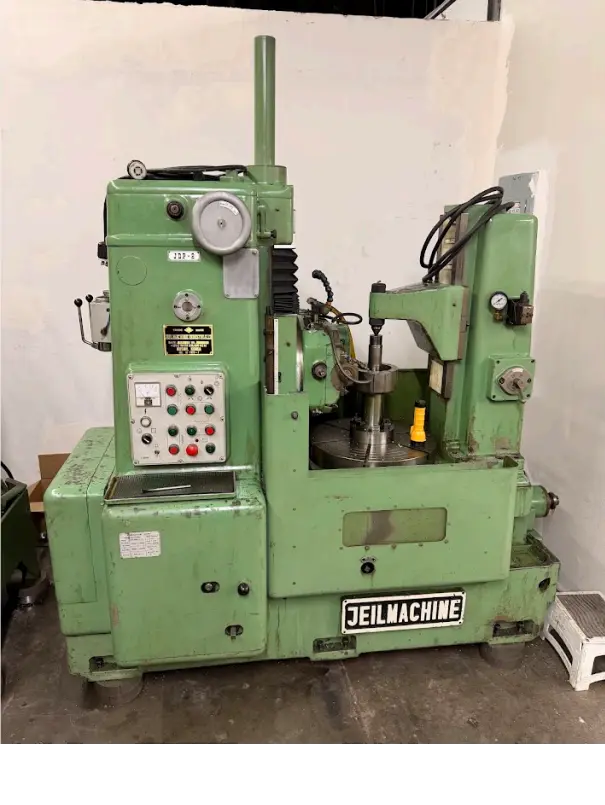

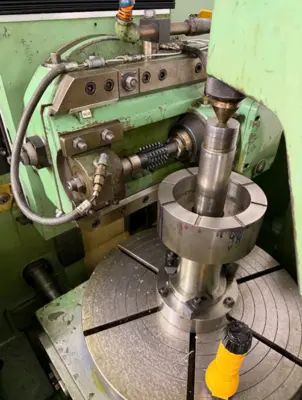

Jeil Model JDP-2 Universal gear hobber , 26" max Diameter capacity , very good condition New 1981 s/n 300

JEIL Vertical universal Gear Hobbing machines
Model JDP-2 s/n 300
New 1981

these are excellent job shop machines and they can be inspected
under power in very good operating condition . they can be run
in the automatic or manual cycles! contact us today to
set up an under power inspection .

Machine specs :

Max diameter Gear w/out support 26"
Max diameter gear w support 20"
Max travel of hob saddle 14"
Max Pitch 4 DP
Diameter of work table 19.5"
Max diameter x length 4.75" x 4.75"
Hob spindle RPM 8 ranges

Machine Features:

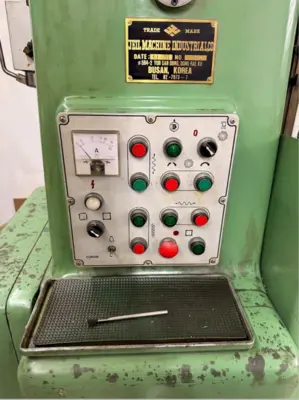

automatic and manual cycles selected by selector switch
spur helical and worm gear cutting
Crowning switch (TBD)
Differential
Infeed
hob shift
auto lube system
auto table clamping
rapid feeds

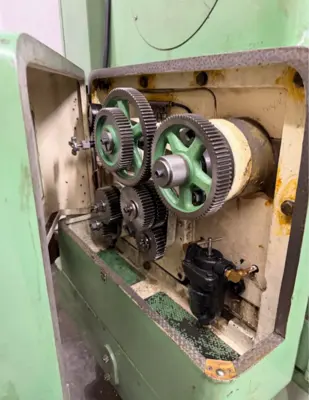

change gears
guarding
manuals and electrical
voltage 480

They are fully automatic and are small foot print machines . contact us today to get a formal
quote & Price or receive more information on them . Visit our website
at WWW.PiselliEnt.com for more information on these or other machines.
or contact Rich Piselli at Rich@PiselliEnt.com to set up an inspection
