Gould & Eberhart model 72H , 1.5 DP , 10-3/4" diameter cutter , 72" diameter capacity , gone through , Inquire

GOULD & EBERHARDT GEAR HOBBER
Model 72H s/n will advise

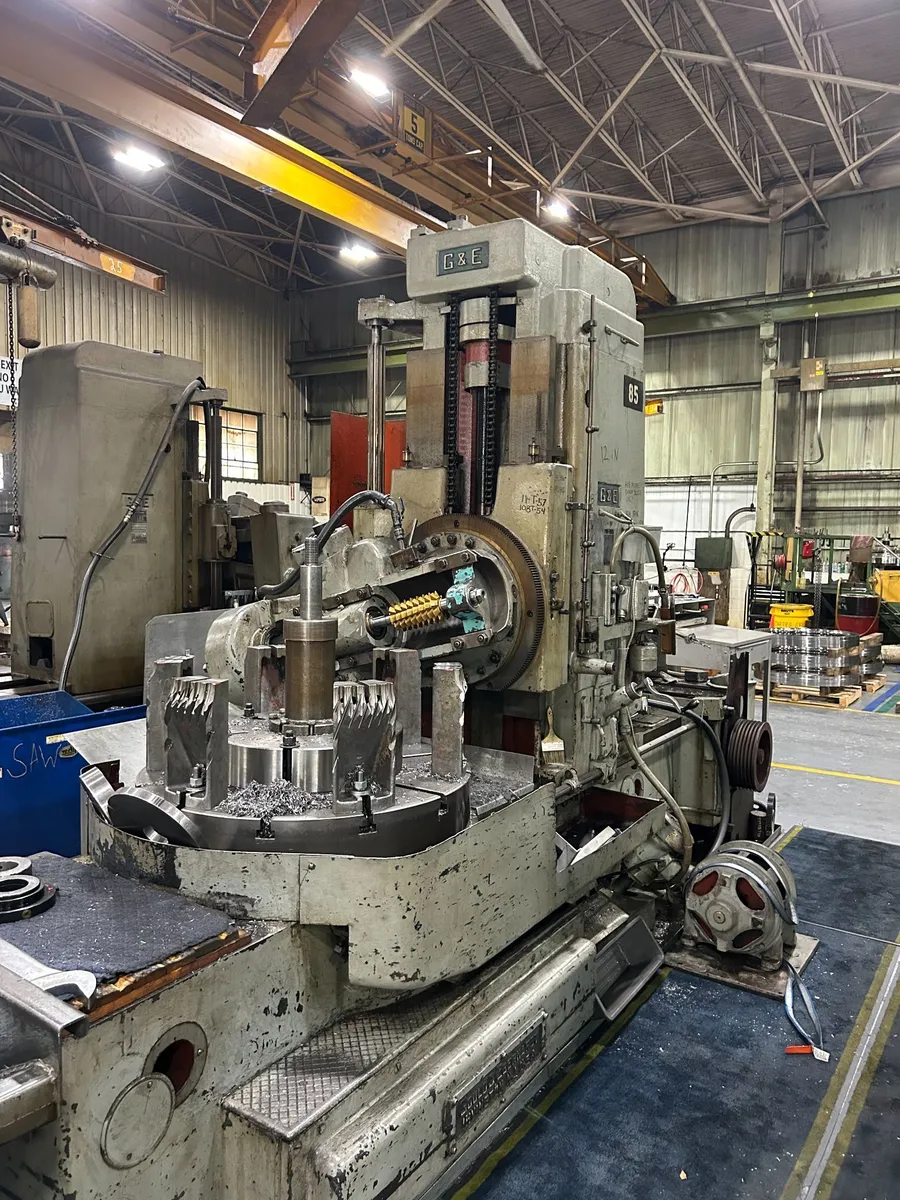

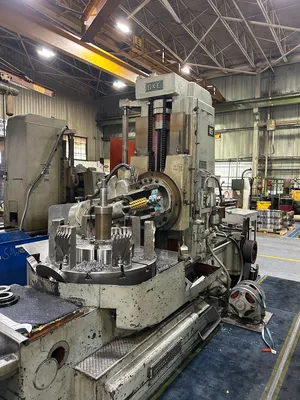

This G&E Model 72H gear hobber can be inspected under power

General machine specs are as follows:
Max. DP in Steel......................................1.5 DP
Face Capacity.........................................40"
Max. Dia Spur Gear w/ Support.........................50"
Max. Dia Spur Gear w/o Support........................80"
Max. Dia Helical Gear w/o Sup (45 Deg)................82"
Min /Max Centers Work & Hob Arbors....................3"/43"
Max. Diameter Hob.....................................10.75"
Diameter of Work Table................................40"
Diameter of Index Worm Gear...........................48"
Hob Speed Ranges......................................6 - 100 RPM
Feed Range.............................................03 - .200"
Main Motor ............................................15 HP
Approx. Dimensions.....................................90 " x 207"
Height with Overarm....................................140"
Approx. Weight.........................................38,000 Lbs

MACHINE IS EQUIPPED WITH:
*Differential
*Infeed
*Hob Arbor (1-1/4" Diameter)
*Assortment of Change gears
*Books and Manuals

Machine will be gone through and tested in our statesville plant! Can be Inspected in NC under power
in excellent running condition when complete .

contact us for a formal quote and or an under power inspection . Visit
our website at WWW.PiselliEnt.com to see this and other machines in
stock at our Statesville NC facility. contact Rich Piselli at (704) 609-0766
