Luren model LFG 3540 CNC Profile Gear grinding machine , 400 mm diameter cap, Fanuc controls installed 2014

LUREN Horizontal CNC Profile Gear Grinding machine
Model LFG-3540
New 2012 installed 2014
Universal gear grinding machine
Fanuc controls
machine is in excellent condition with very little usage

Machine catalog specifications:
Min/Max Outside Diameter 30/400mm (1.2" / 15.7")
Max. Module M8 (Diamond Pointer Type/M12 (Roller dresser type)
Grinding Tooth Range 9-999
Max. Profile Depth 34mm (1.3")
Max. helix angle of gas lead +- 45 degrees
Min./Max. Distance between centers 1,200mm (47.2")
Max. Grinding Face Width 400mm (15.8")
Voltage 220V
Current Requirements 50Amp
Fanuc Controls
Space requirement L x W x H 4,000 x 4,100 x 2,365mm
Weight 8,500kg (18,700lb)

Machine is equipped with the following:

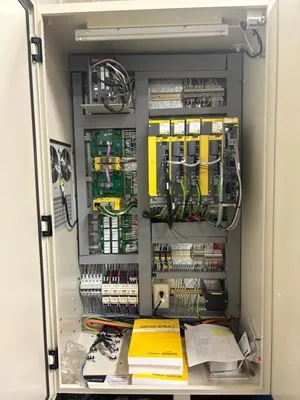

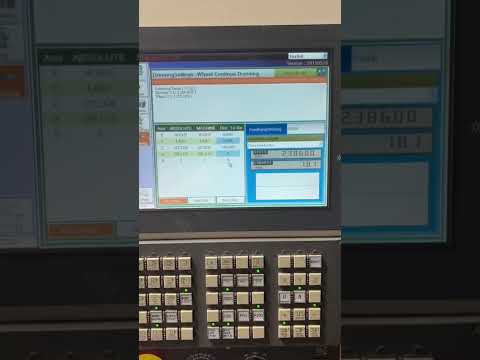

Fanuc 30-I cnc control motors and drives
cnc wheel dressing

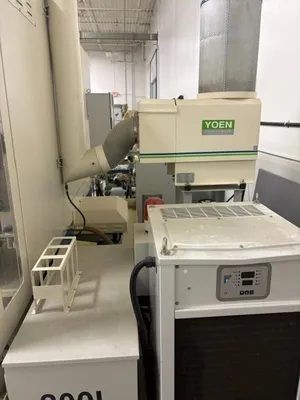

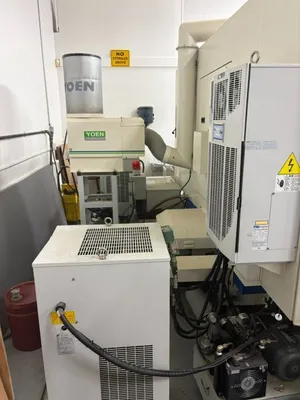

Oil chiller
coolant tank with paper filtration unit
misc tooling , grinding wheels , wheel flanges , etc.
full documentation and Back ups

Inspect machine under power with proper notice

contact rich or Nick piselli at Piselli enterprises inc for more
info , formal offers and / or to set up an inspection
contact Nick at Nick@Pisellient.com
contact Rich at Rich@Pisellient.com
www.piselliEnt.com
