2018 KLINGELNBERG-OERLIKON G30 & C30 CNC spiral bevel gear cutting and Grinder machine available. Being Sold as a package.

2018 KLINGELNBERG-OERLIKON Gear Cutting & Grinding package
for the CNC Manufacturing of spiral bevel gears
Siemens 840D control, direct drive spindles, automatic features.
Max gear diameter 280mm, face width 58mm.
Includes extensive accessories, perfect for precision work.

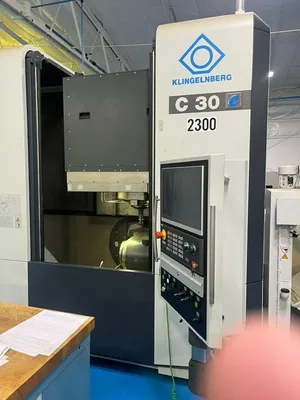

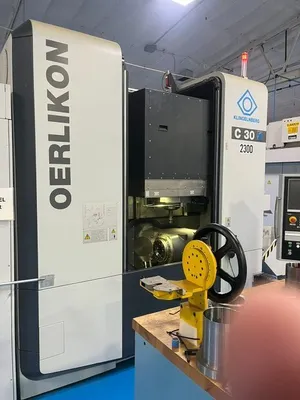

Specs for C30 Gear cutting Machine
Year 2018
Maximum Workpiece Diameter: 280 mm
Normal Module: 1,5 - 6,5
Maximum Face Width: 58 mm (approx)
Minimum/Maximum Spiral Angle: 0/60 Degrees
Minimum/Maximum Ratio: 1:1/1:10
Maximum Cutter Head Spindle Speed: 1500 RPM
Workpiece Spindle Through Bore: 93 mm
Workpiece Spindle Speed: 1500 RPM
Floor Space (LxWxH): 3850 x 2415 x 2900 mm (including hydraulic and
electrical enclosure W/out platform, service doors closed)
Net Weight: 20,000 kg
_______________________________________________________________________________

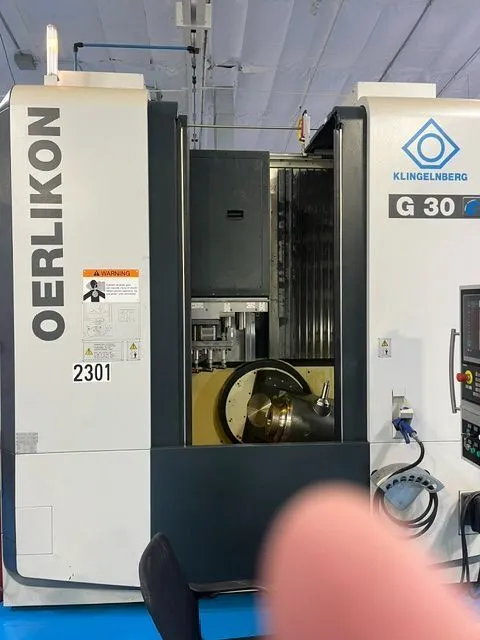

Klingelnberg Oerlikon G 30 is a high-precision,
vertical-concept CNC spiral bevel gear grinding machine designed for the productive,
high-accuracy finishing of curved-toothed bevel gears and face-type clutches.

Specs for G30Gear grinding machine
Year 2015
Maximum Workpiece Diameter: 300 mm
Normal Module Range: 0.7 - 8 mm
Pitch Cone Angle Range: -90 Degrees up to 90 Degrees
Through Bore of Workpiece Spindle: 99.258 mm (3.9")
Grinding Wheel Diameter Range: 50 mm - 230 mm (2"-9")
Maximum Grinding Spindle Speed: 8,000 RPM

machines can be inspected in customers plant under power in "Like New"
condition . machines have not run production and have had little or NO use .
let us know if and when you may want to inspect these machines under power!!

contact Rich or Nick piselli at Piselli enterprises inc for more
info , formal offers and / or to set up an inspection
contact Nick at Nick@Pisellient.com
contact Rich at Rich@Pisellient.com
www.piselliEnt.com
