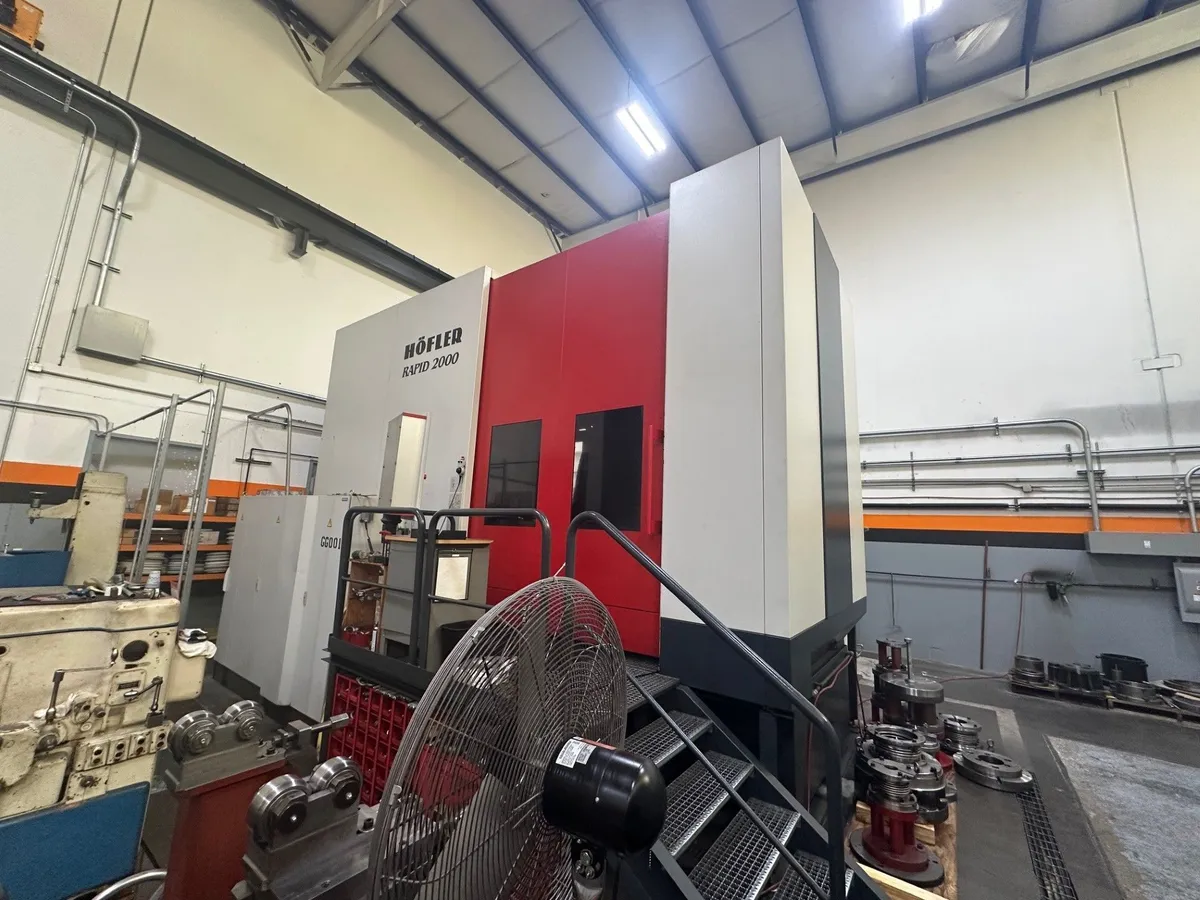

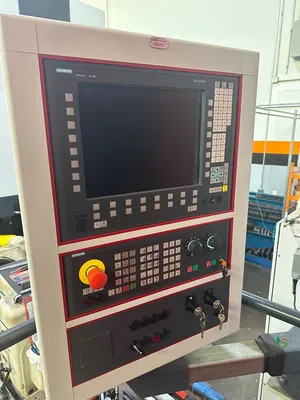

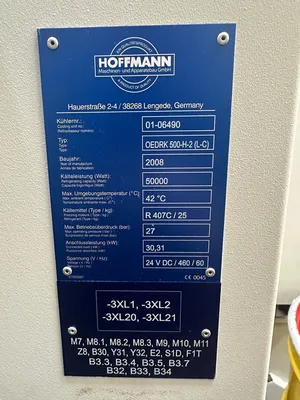

2008 HOFLER Rapid ll 2000 Option for Internal Grinding

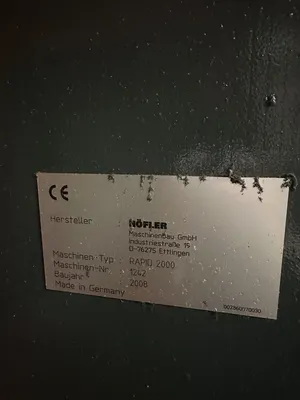

Built in 2008 at Klingenberg Germany, installed in service around 2010.
We have all the books and tech specs.
Grinding stroke (with external toothing) 1500mm
Grinding spindle drive (Special) 24 (37) kW
Grinding wheel swiveling angle 120/—45 Grad
Table load 14000 kg

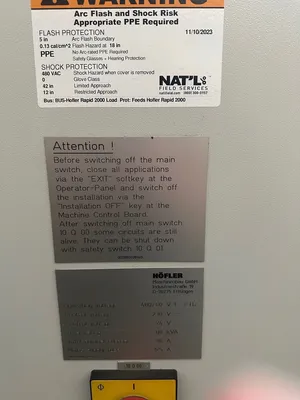

Operating capacity 70 kVA
Total weight 42000 kg
Workpiece data (External toothing)
Tip circle diameter da 2000 mm
Number of teeth unlimited
Profile height 100 mm
Module (dependent on the toothing data) min.- max. ca. 1 - 44 mm
Workpiece data with internal grinding device RI (Internal toothing)
Maximum outside diameter 2000 mm
Tip circle diameter da min 300 mm
Profile height max 60 mm
Ring thickness 200 mm
Tool data (External toothing)
Maximum outside diameter of grinding wheel 450 mm
Minimum diameter of grinding wheel at the shoulder 206 mm
Grinding wheel width (Standard) 70 mm
Grinding wheel width (Special) see Figure 2-15 130 mm
Speed of dressing spindle 4000 rpm
Dressing roll diameter (Standard) 120 mm
Speed of dressing spindle 10000 rpm

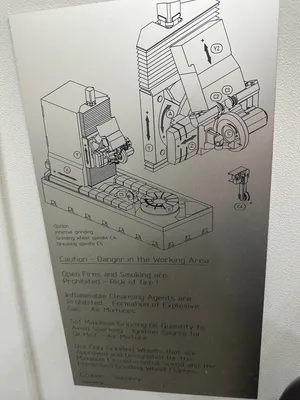

Internal grinding device RI (Internal toothing) Tooling
Maximum outside diameter of grinding wheel 300 mm
Minimum diameter of grinding wheel at the shoulder 150 mm
Immersion depth 500 mm
Grinding wheel width, see Figure 2-16 50 mm
Speed of grinding spindle 6000 mm
Dressing roll diameter (Special) 160 (200) mm
Internal grinding device R2 (Internal toothing)
Maximum outside diameter of grinding wheel 250 mm
Minimum diameter of grinding wheel at the shoulder 110 mm
Immersion depth 450 mm
Grinding wheel width, see Figure 2-17 40 mm
Speed of grinding spindle 6000 rpm
Dressing roll diameter (Special) 160 (200) mm
